F9 V‑Bank Air Filter – Vdura Series

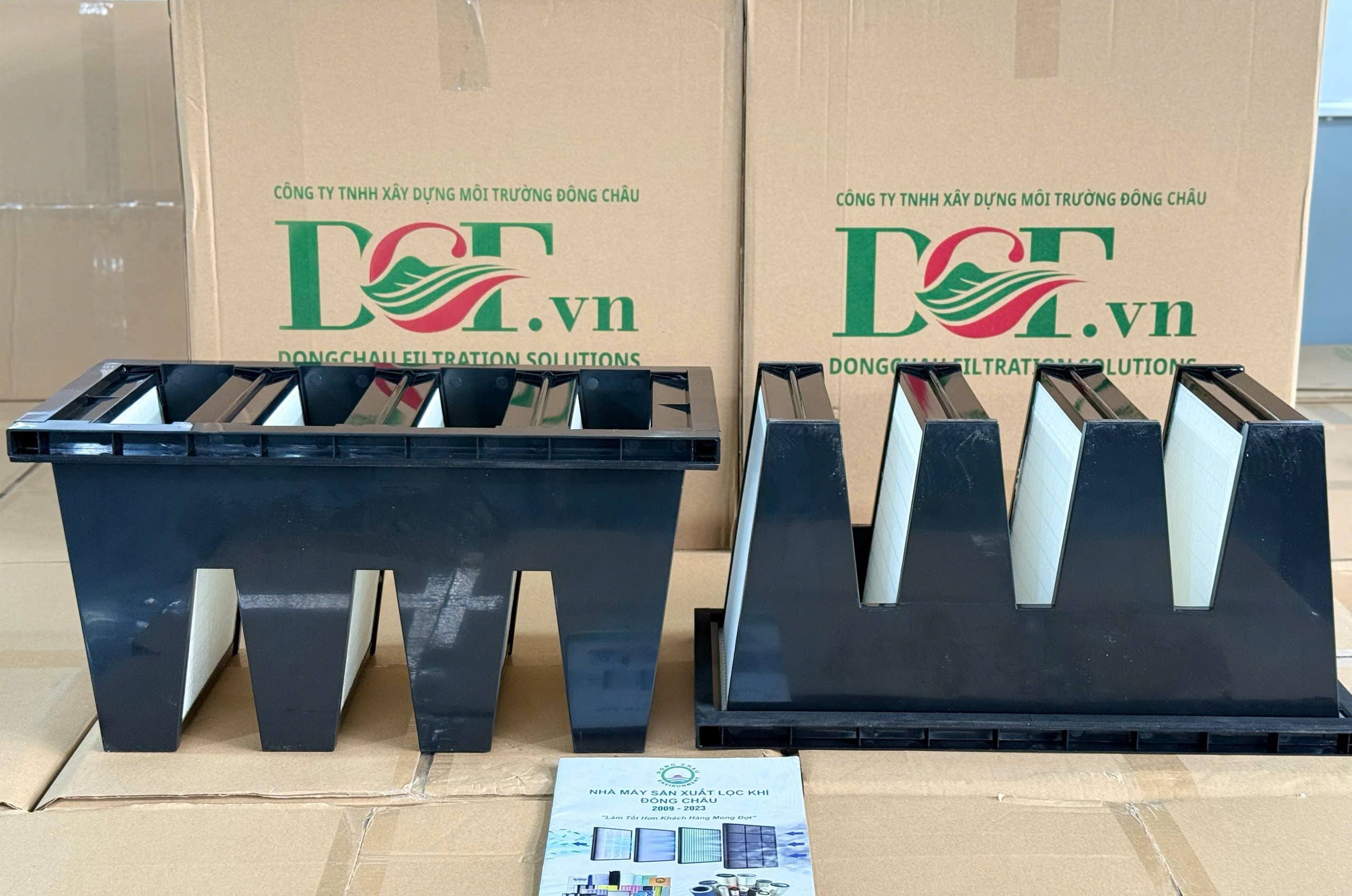

Overview of F9 V-bank Frame Filter Vdura

In the field of commercial air conditioning and ventilation, the F9 V-bank Vdura frame filter stands out as an effective solution for both intermediate and final filtration, especially suitable for high-capacity air handling systems. Designed to meet stringent filtration performance requirements, this filter can capture fine dust particles as small as ≥0.5 microns with an efficiency ranging from 65% to 95%, depending on the specified standard.

Additionally, the F9 V-bank Vdura filter offers exceptional customization, flexibly meeting specialized technical requirements for each project. Its ease of integration into existing HVAC systems without significant conversion costs helps contractors and operators save both time and resources. Thanks to the combination of advanced technology and practical design, this product not only improves air quality but also optimizes overall system energy efficiency, making it a truly “seeing is believing” solution for modern facilities.

Outstanding Performance Advantages

• Optimized airflow: The unique V-shaped structure creates larger air channels, increasing the airflow through the filter while maintaining lower pressure drop compared to flat panel filters. “Wide air intake, smooth air outlet” – a clear advantage for modern AHU systems.

• Extended service life: Deeply pleated media packs maximize the filtration surface area within a compact frame, significantly boosting dust holding capacity and reducing filter replacement frequency. “One change, long-term peace of mind.”

• Modular design: Multiple filter cells are arranged in parallel within a single frame, allowing dense media packing without compromising airflow. This space-saving design supports high MERV ratings even in limited technical spaces.

Versatile Frame Materials – Flexible Installation

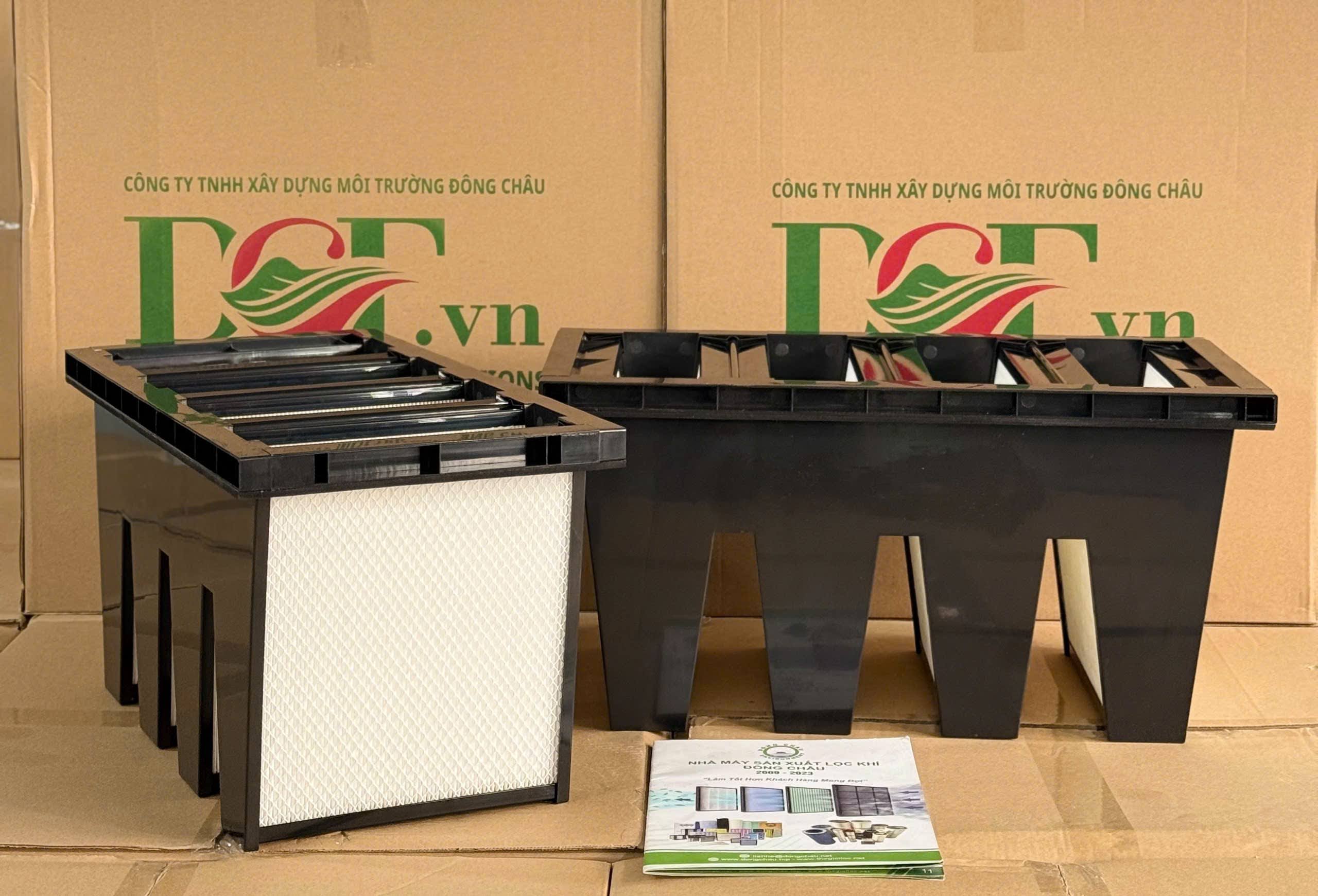

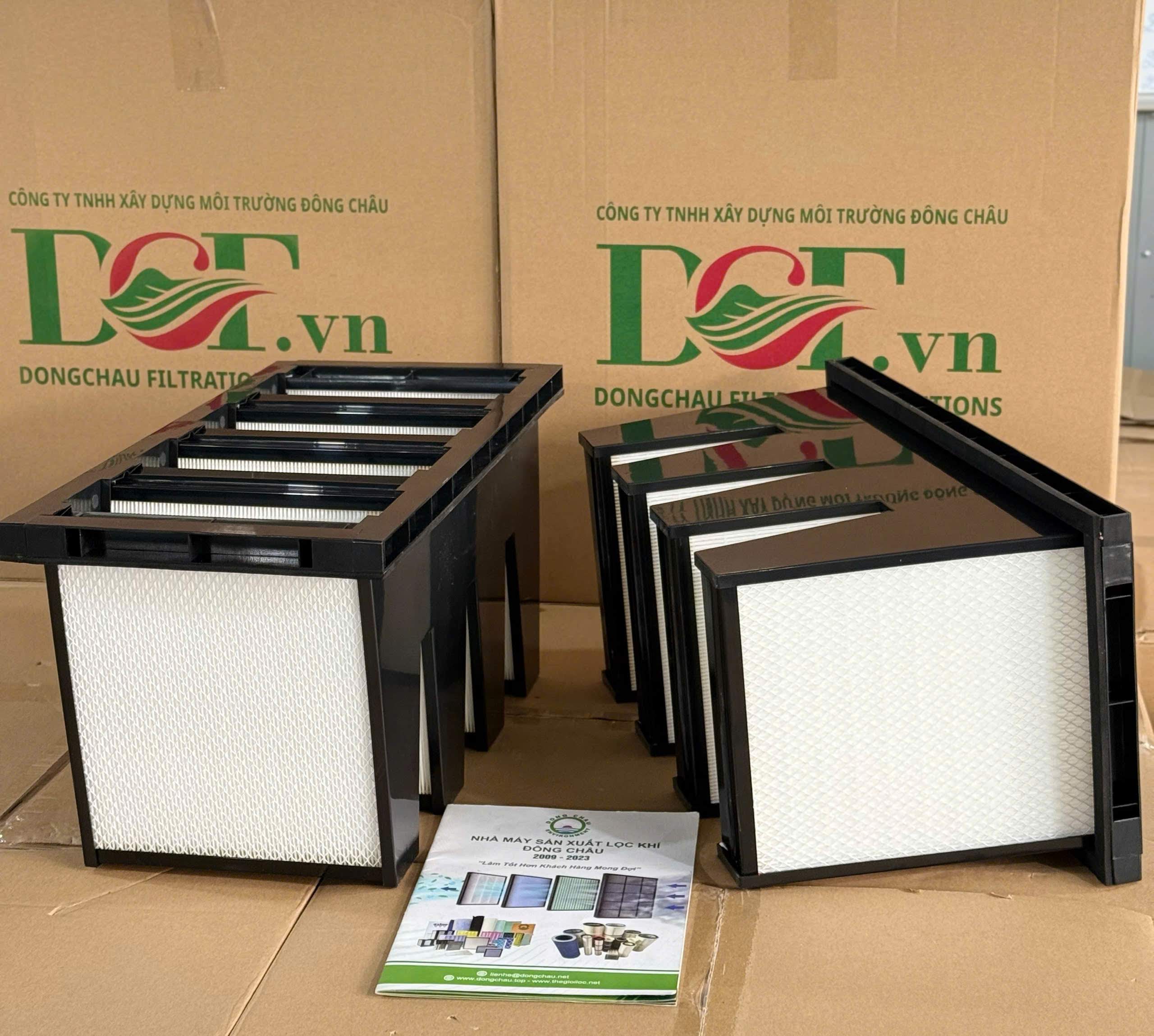

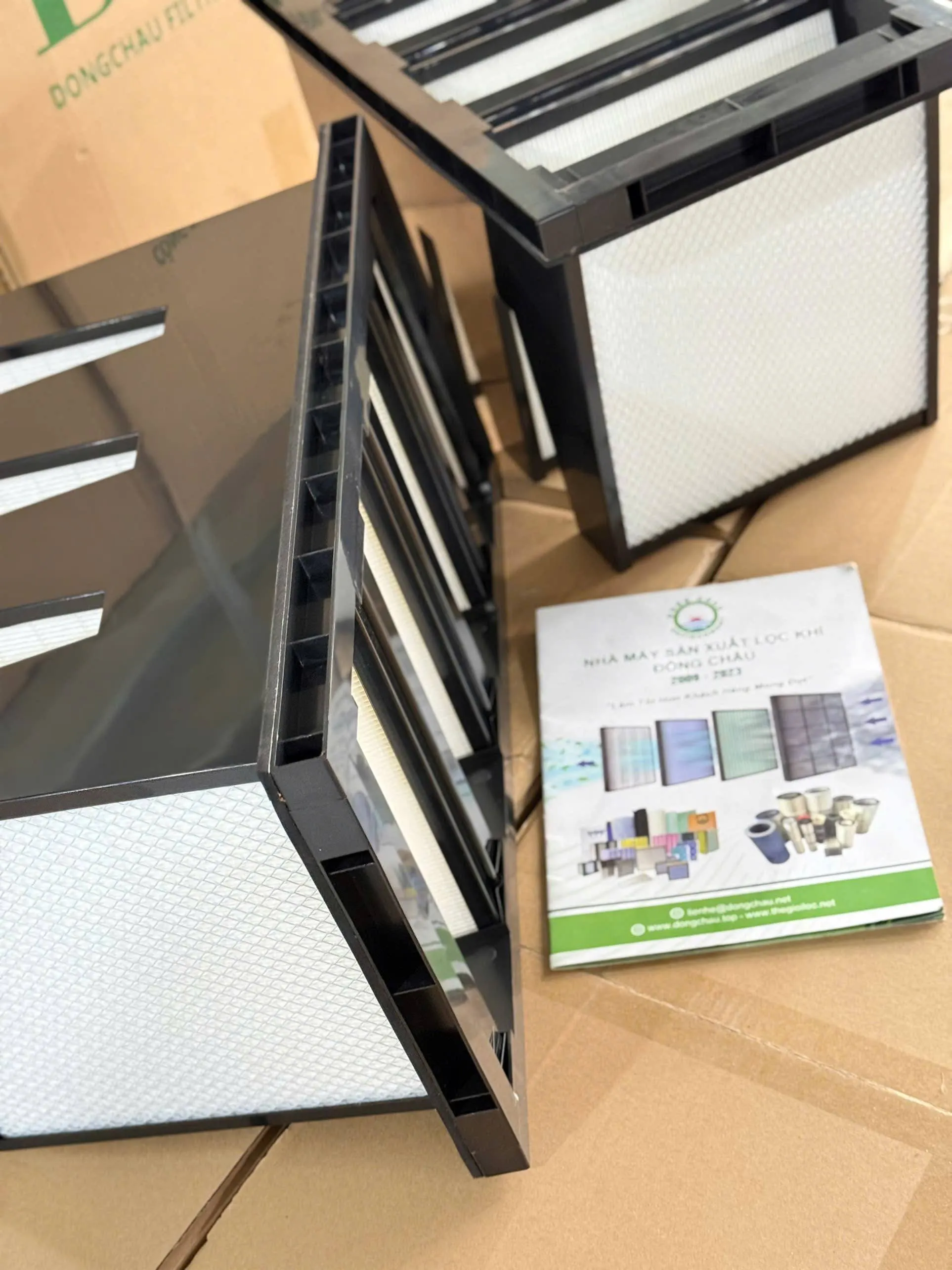

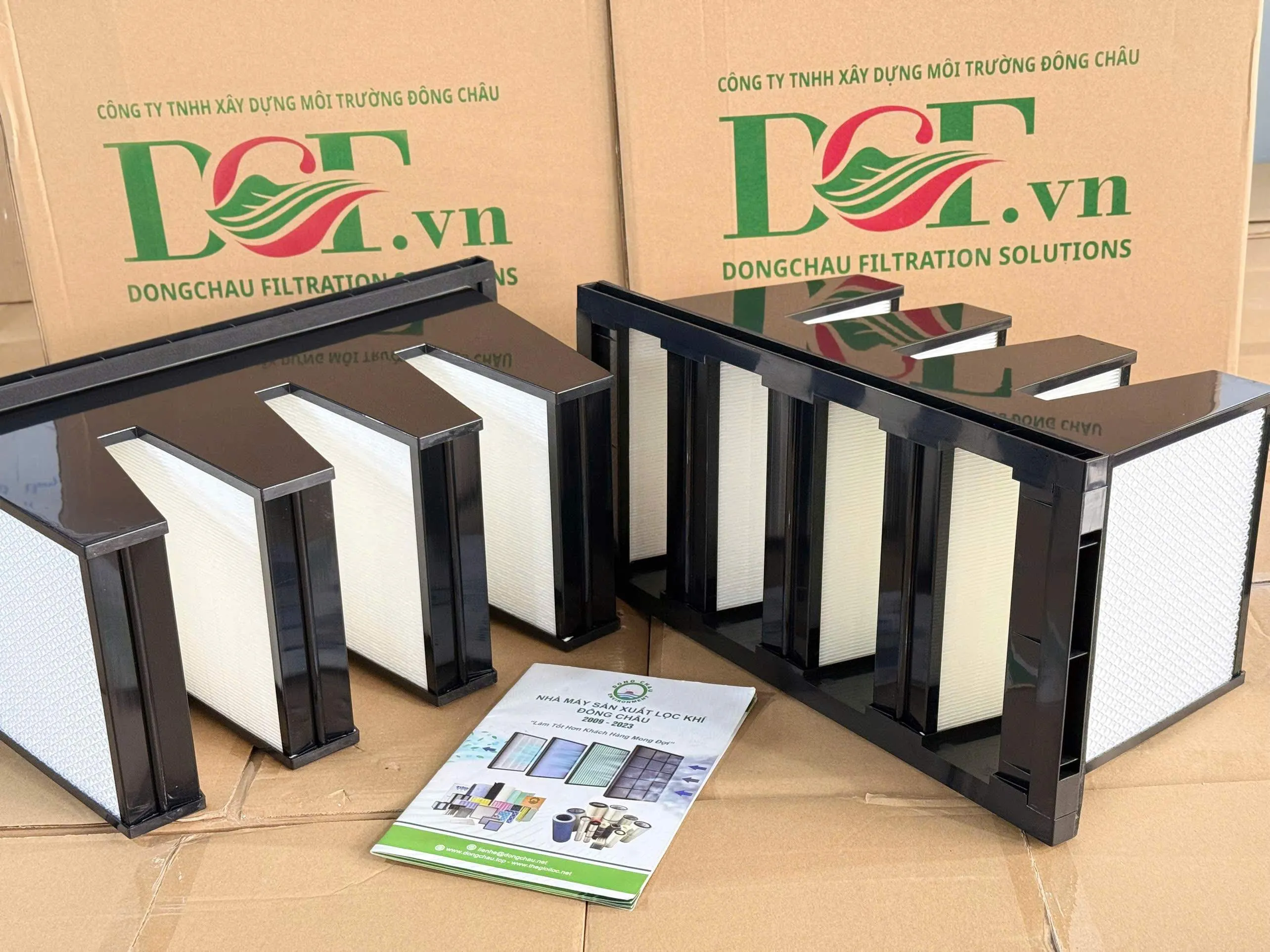

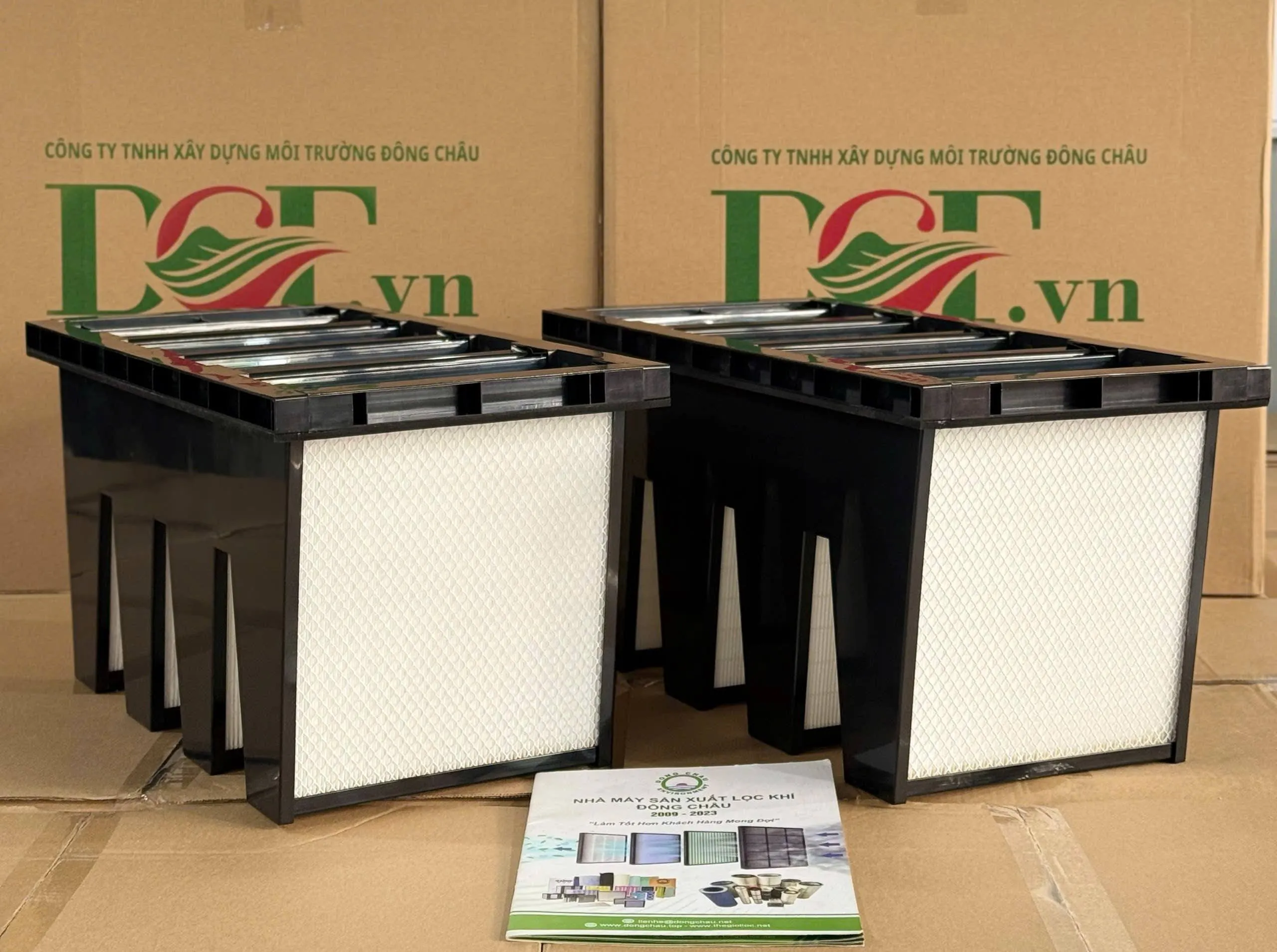

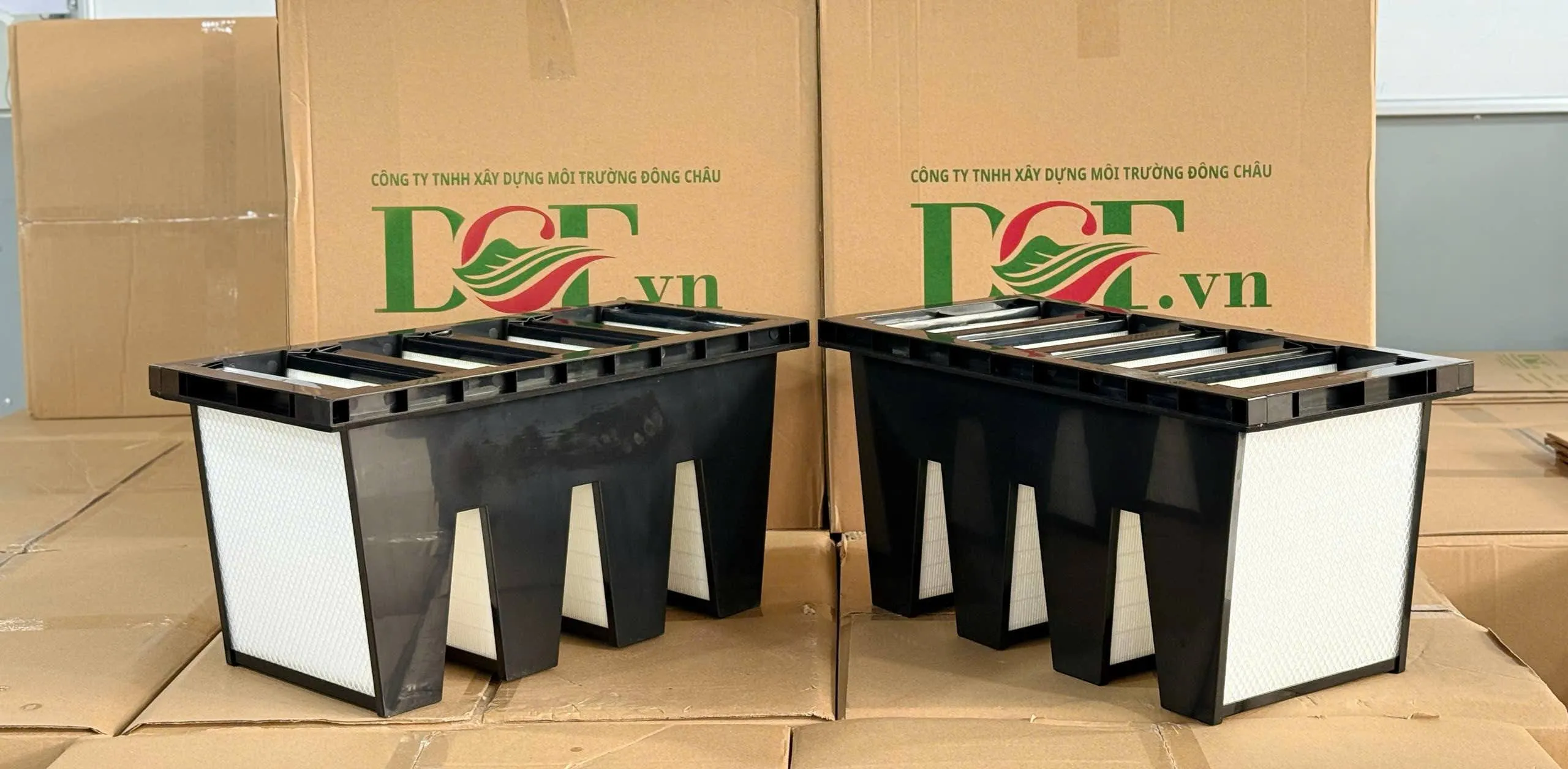

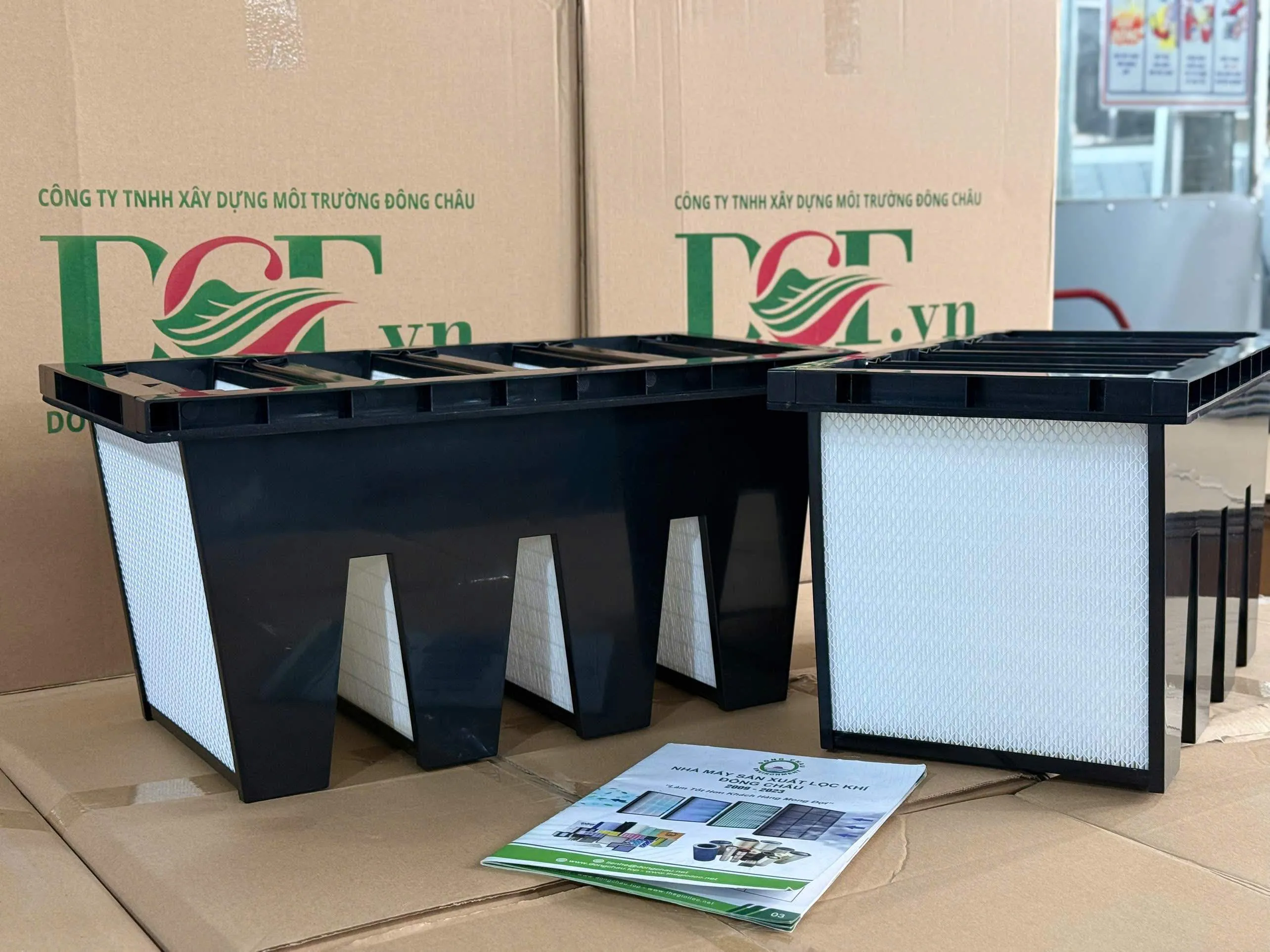

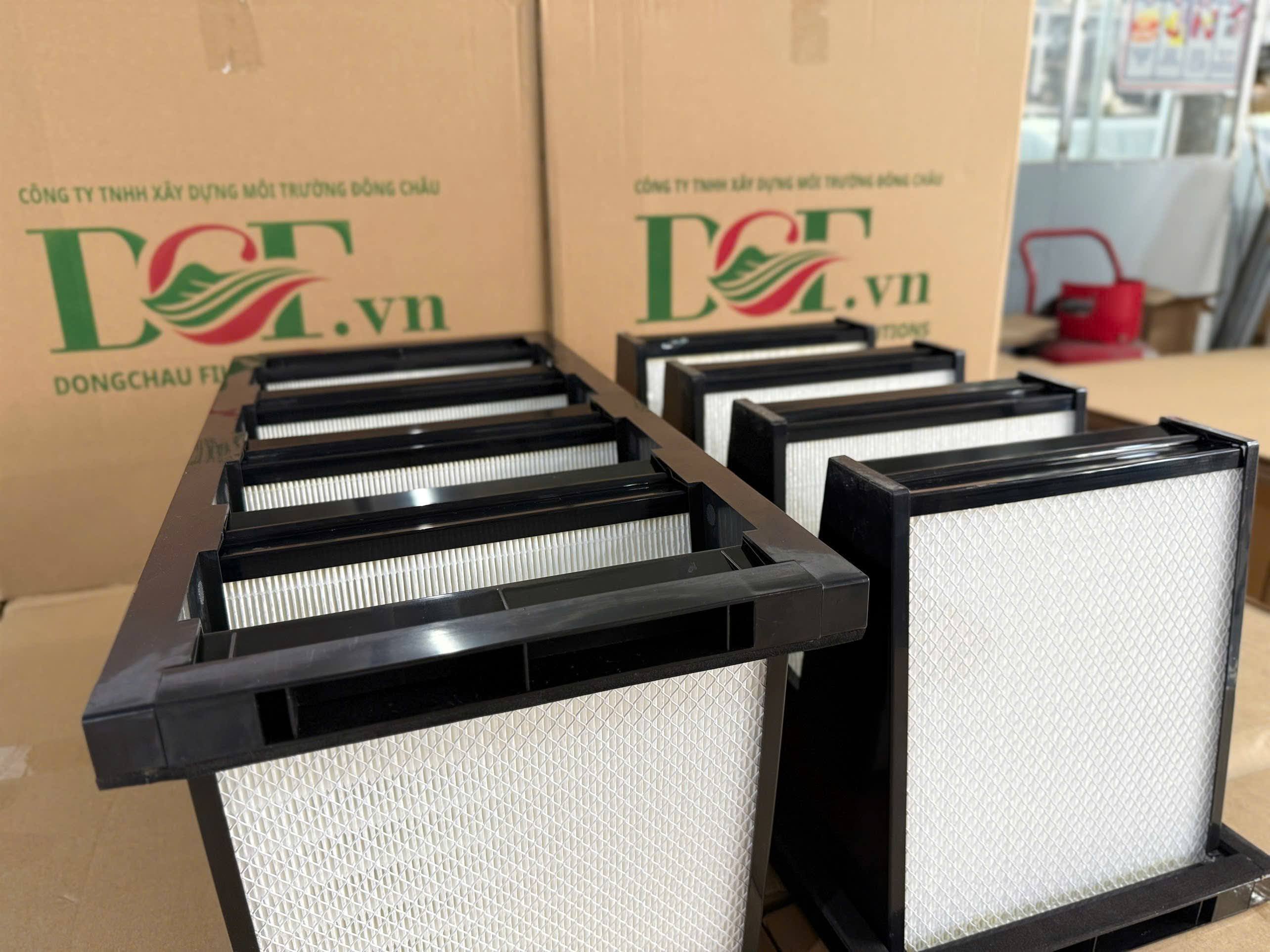

• ABS plastic frame: Molded in one piece for dimensional stability in standard sizes like 24″x24″x12″, 12″x24″x12″, and 12″x12″x12″. The 25mm-thick frame features an integrated EVA gasket, ensuring an airtight seal—ideal for standard AHU rack systems.

• Metal frame (galvanized steel or aluminum): Supports custom sizes such as 610x610x292mm, 610x305x292mm, and can be configured with or without flanges. Well-suited for retrofit or non-standard installations.

F9 V-bank Frame Filter Technical Specifications Vdura

Advanced Filtration Technology – Multiple Media Options

The F9 V-bank Vdura filter employs advanced filtration media such as glass fiber or polyester to meet criteria for performance, durability, and safety:

• Glass fiber: Emits no toxic gases, features a hydrophobic structure to inhibit microbial growth, meets UL 900 Class 1 fire resistance, and is ideal for cleanrooms, hospitals, and laboratories.

• Polyester: Has 10–15% lower initial resistance, a lifespan of 6–12 months in standard environments, is recyclable, and is suitable for data centers or cost-effective applications.

“Glass fiber – as durable as stone, as clean as dew” is the preferred choice for applications requiring strict microbial control and absolute safety.

Specialized Applications by Industry

• Pharmaceuticals / Biotechnology: H13–H14 grade with stainless steel frame and IP69K waterproof gasket.

• Data centers: F7–F9 polyester grades for cost-effective dust control.

• Paint booths: Fire-resistant glass fiber with anti-spark coating.

Technical Innovations – Performance Optimization

• Aerodynamic pleating: Asymmetrical pleat design reduces pressure drop by up to 20%, allowing the system to operate “quietly and smoothly.”

• Absolute tightness: Dual EPDM + Silicone gaskets ensure air leakage below 0.01%.

• Smart monitoring: Integrated RFID for ∆P differential pressure tracking, ready for IoT upgrades in modern operational management.

Conclusion

The F9 V-bank Vdura frame filter is an ideal air filtration solution for commercial HVAC systems, cleanrooms, hospitals, electronics factories, and food plants, offering outstanding performance, durability, and reliability. “Choose quality filtration, ensure long-lasting operation – invest once, enjoy peace of mind for years.”

If you are searching for an optimal air filtration solution for specialized equipment, you can confidently choose Dong Chau—the direct manufacturer of genuine air filter products at the DCF.vn factory. We guarantee to meet all technical requirements and provide filters tailored to each specific application. The Dong Chau team offers design support, consultation, and a wide range of product options, committing to “manufacture the right product, deliver quickly, and ensure precise installation” for every machine type: from AHU, clean rooms, paint booths, to specialized filtration systems for pharmaceuticals, electronics, and food industries.

With a reputation for reliability, Dong Chau delivers attentive after-sales service and filtration solutions that “fit perfectly wherever needed,” helping businesses save on operational costs and enhance production efficiency. Contact us now to receive the best quotation and expert advice from leading air filtration specialists!

Technical Specifications Table – F9 V-bank Filter Vdura

* Size and filtration grade can be customized to meet actual application requirements.

This information helps you easily select the right model based on airflow, pressure drop, media area, and desired filtration efficiency. “Choose the right specifications – operate efficiently, save costs.”
