Stainless Steel Mesh Filter Cartridge Oring 226/Fin – Specialized Solution for Water and Oil Filtration on Demand
Flexibly meets all filtration needs with standard dimensions OD68 x ID38/0 x H200mm, modern 226/Fin connection
The stainless-steel mesh filter cartridge with Oring 226/Fin connection is a specialized product designed for industrial water and oil filtration systems, manufactured to each customer's unique specifications. Featuring a robust design made from premium stainless steel, it offers excellent corrosion resistance, heat and pressure tolerance, making it especially suitable for harsh environments such as chemical plants, food processing, wastewater treatment facilities, or industrial oil filtration lines.
Thanks to its diverse design options and flexible customization, the stainless-steel mesh filter cartridge Oring 226/Fin helps businesses optimize their operation processes for specific requirements, ranging from preliminary filtering to deep fine filtration. Selecting the right material, mesh structure, and connection type enhances performance, ensures system safety, and helps minimize equipment failure risks during long-term use.
If your system operates in environments with stronger corrosion, we recommend using SS 904L material to manufacture the filter cartridge, ensuring outstanding durability against chemicals and harsh conditions. Additionally, an external reinforcement structure can be added to meet requirements for higher rigidity under high-pressure use, while still maintaining precise filtration levels from 1–5000 microns.
The stainless-steel mesh filter cartridge Oring 226/Fin features a multi-layer sintered mesh design, maintaining consistent pore structure and ensuring uniform filtration efficiency up to 99.98%. As a result, this product is widely used in the pharmaceutical, wastewater, chemical industries, and many other sectors.
Detailed Description
The stainless-steel mesh filter cartridge Oring 226/Fin is crafted from premium materials such as SS304, SS316L, Super Duplex, and SS 904L (customized per customer request). Thanks to this material diversity, the product adapts well to various environments, especially those requiring high corrosion resistance and mechanical strength.
The filter achieves outstanding filtration efficiency up to 99.98%, ensuring the maximum removal of fine dust, sediments, and microorganisms during operation. The maximum differential pressure the cartridge can withstand is 362.5 psi, maintaining stable performance even under high-pressure conditions.

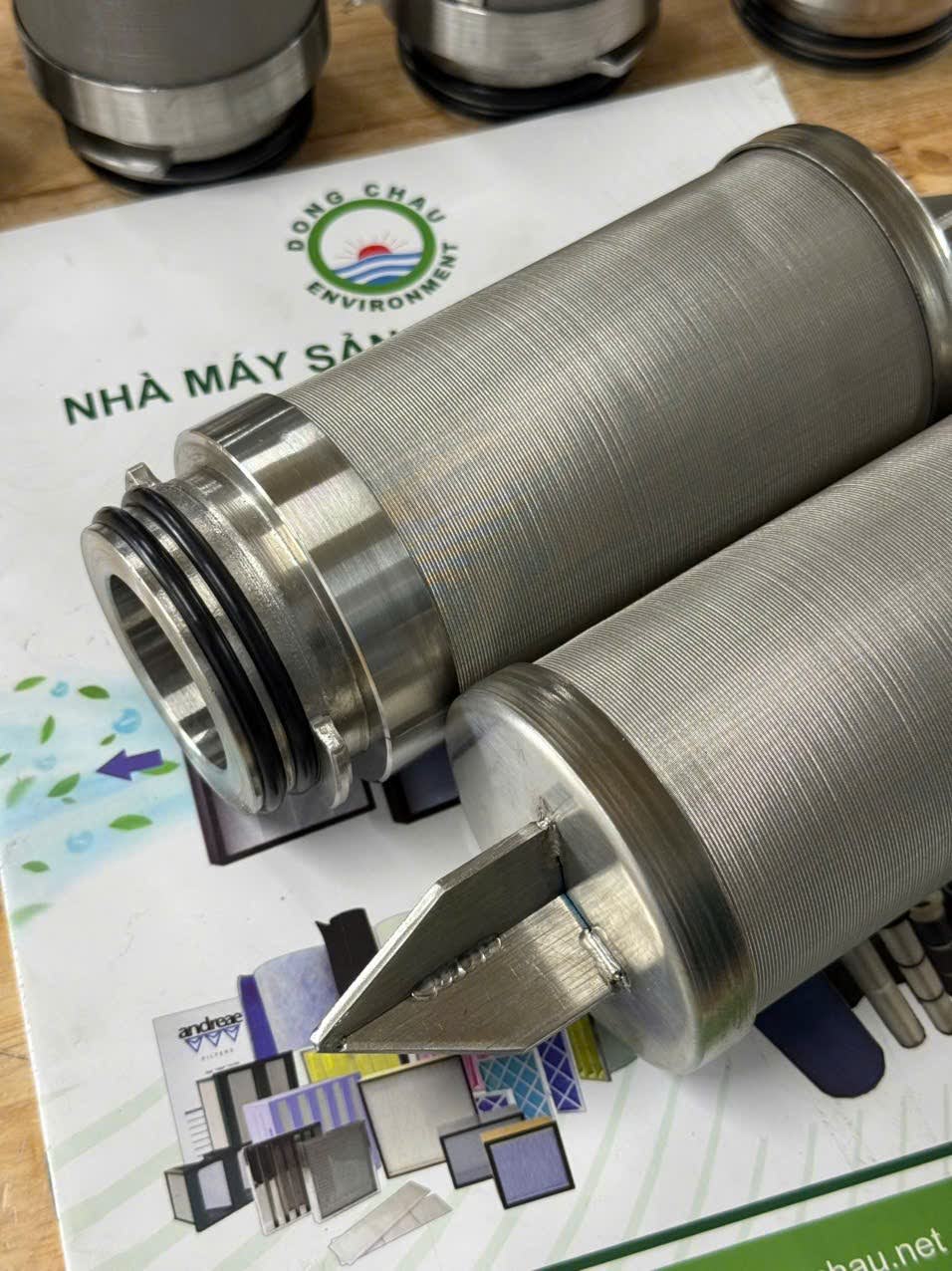

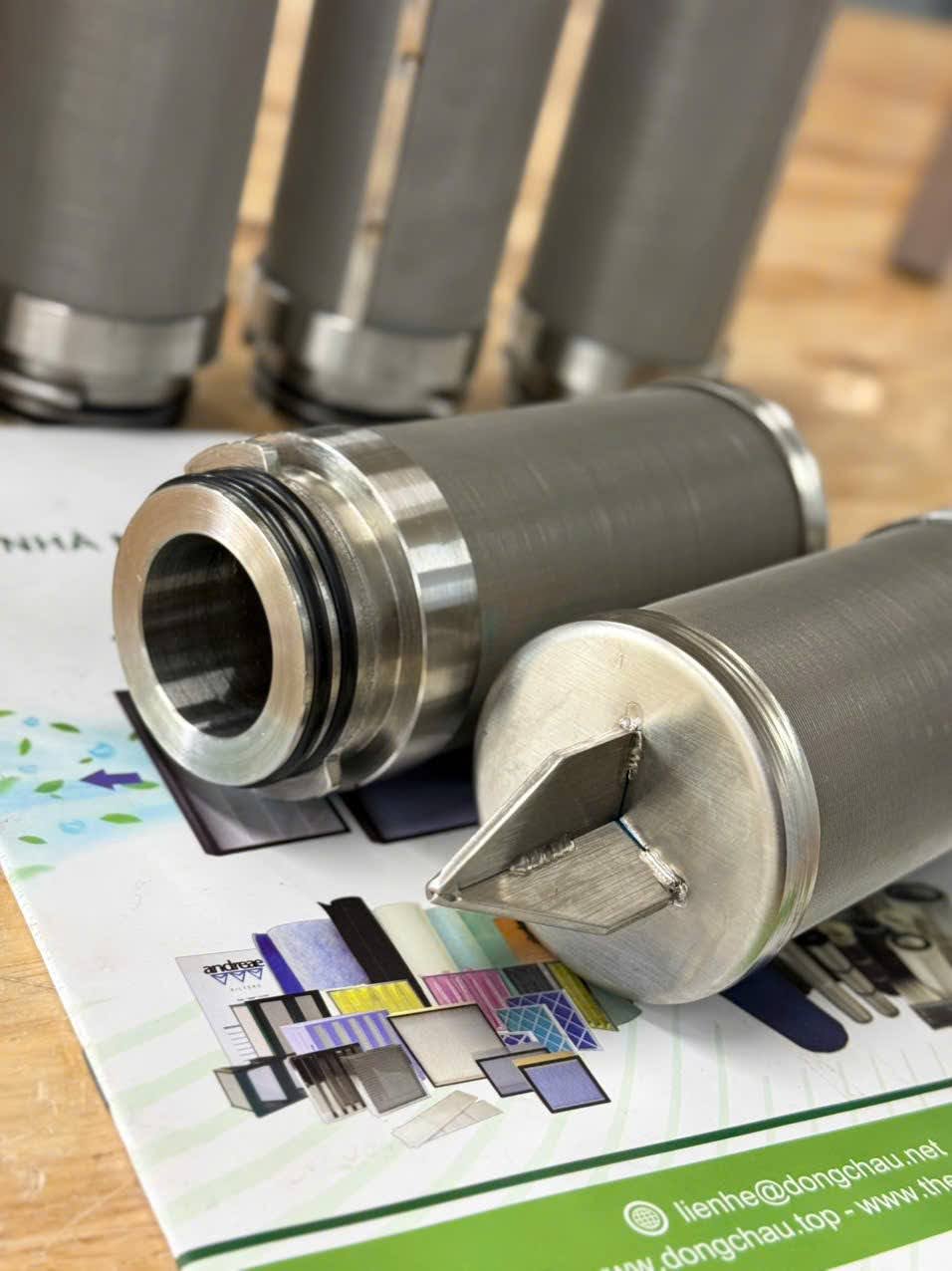

For connectivity, the cartridge uses a 226/Fin (bayonet-style) end cap, enabling quick, secure, and leak-proof installation and making it compatible with numerous modern filtration systems.
The product supports a wide filtration range from 1 to 250 microns, suitable for various applications from coarse to fine filtration. The actual size includes an outer diameter of OD68mm, an inner diameter of ID38/0mm, and a height of H200mm, offering maximum flexibility for integration into different filtration systems.
Designed with 5 to 8 mesh layers, the filter cartridge significantly enhances dust retention and extends product lifespan. Additionally, the cartridge's length reaches 1000mm, making it suitable for a wide range of industrial filtration systems, ensuring effective filtration and durability during extended use.
Note: OEM manufacturing is available upon request.
The Dong Chau engineering team is always ready to advise and provide optimal filtration solutions tailored to each business's practical needs. Please contact us for support and the best quotation!
Key Technical Specifications
-
Actual size: Outer diameter OD68mm, inner diameter ID38/0mm, height H200mm – flexibly fits a variety of filtration systems.
-
Material: Stainless steel 304, 316, 316L, etc., offering corrosion resistance, acid and alkali tolerance, and high temperature durability.
-
Mesh structure: Uses woven stainless mesh, perforated mesh, or sintered mesh – supporting a broad range of filtration levels from 1 micron to 5000 microns, ensuring effective removal of sediments, impurities, heavy metals, and microorganisms.
-
Connection method: Oring 226/Fin (bayonet-style) end cap – enables fast, secure, leak-proof installation, matches international standards for air, water, and oil filtration.
-
Manufacturing process: Argon arc welding, seam welding, stamping, drawing, plastic pressing, etc. – ensuring absolute durability and tightness for the product.
Outstanding Features
-
Superior filtration efficiency: Thanks to high-quality stainless-steel mesh, the cartridge efficiently removes fine dust, sediments, and microorganisms, ensuring maximum water and oil purity.
-
Long service life: Stainless steel resists corrosion, withstands strong chemicals and humid environments, providing durable use and reducing replacement costs.
-

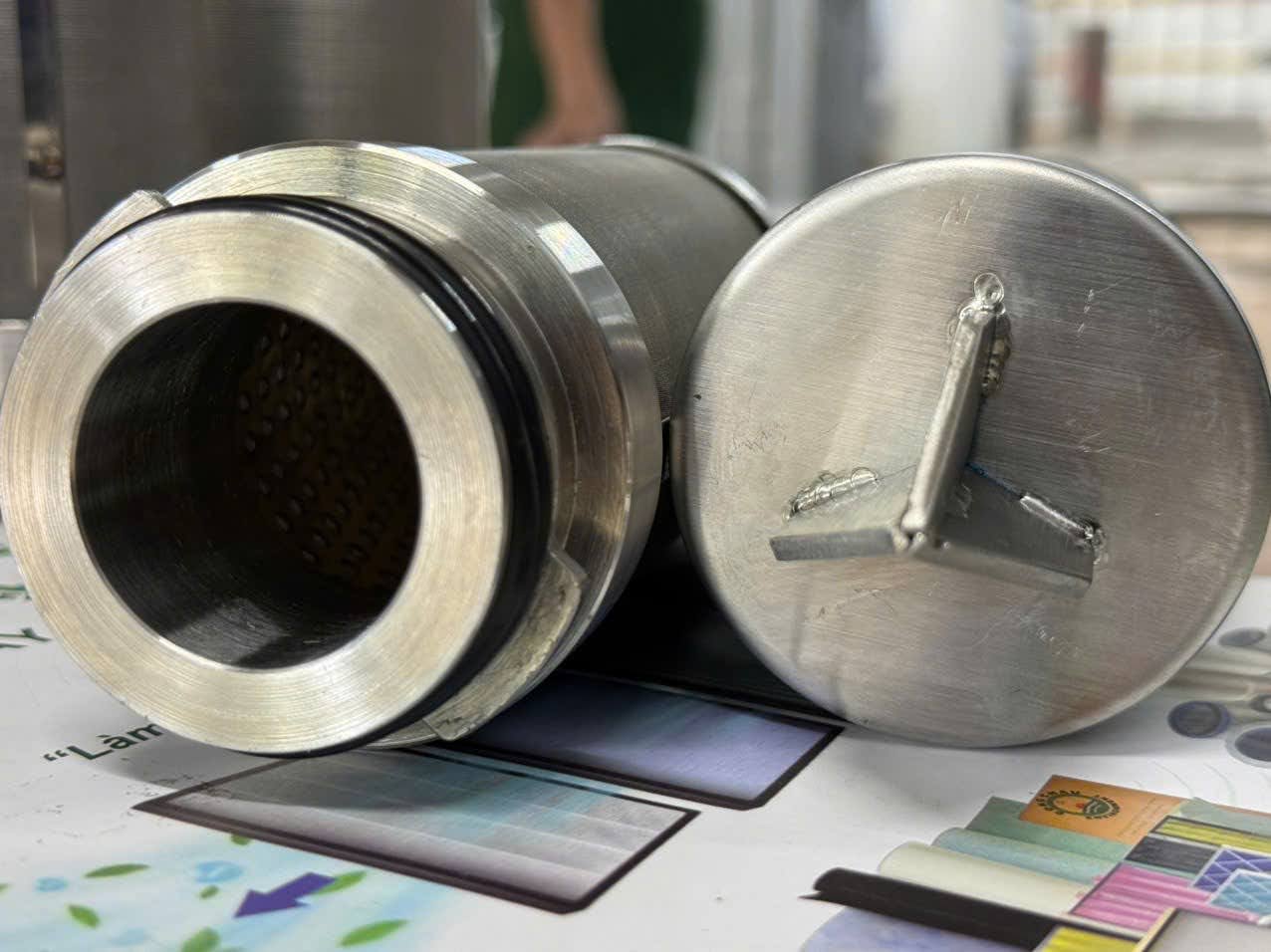

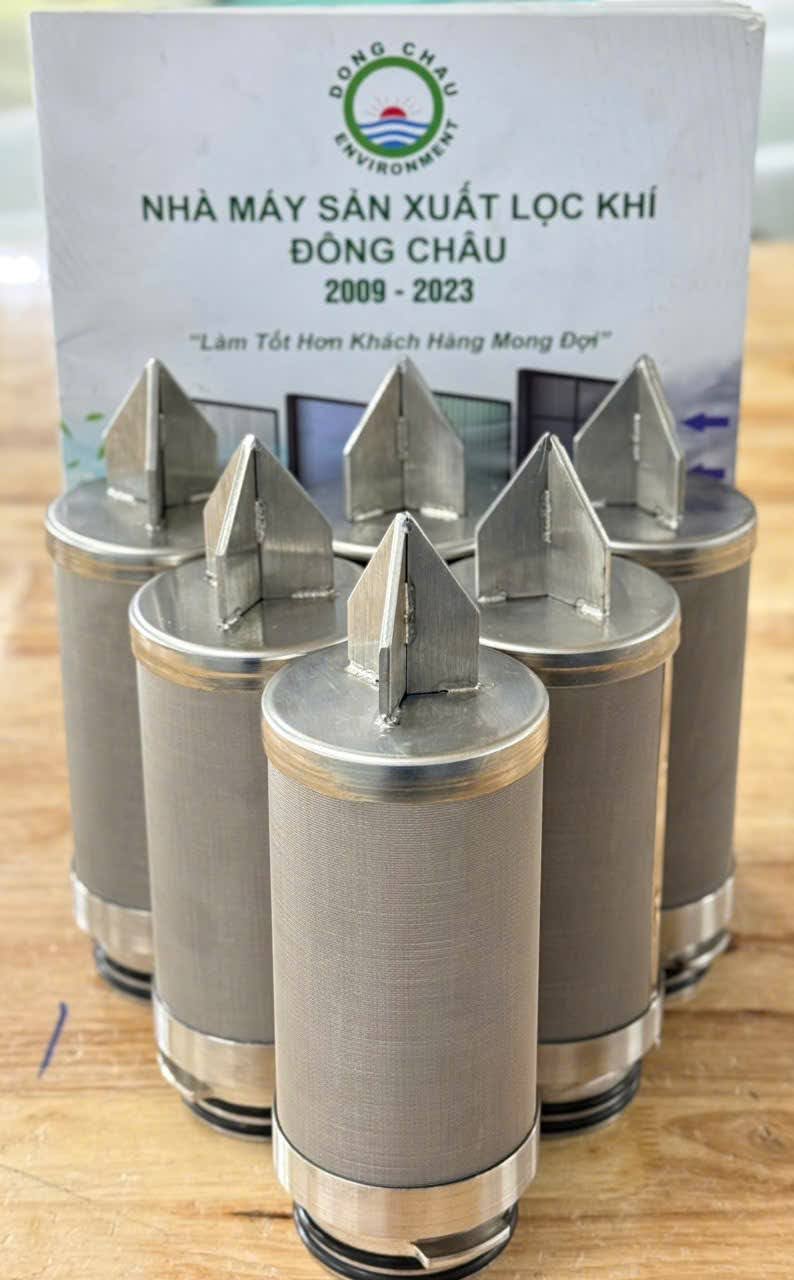

Convenient installation and maintenance: Oring 226/Fin connection allows for quick assembly, easy cleaning, and maintenance with minimal downtime. The pointed design increases contact surface area, optimizing filtration efficiency.
-
Customizable on demand: Manufactured to custom sizes, materials, and filtration grades, precisely meeting the specific requirements of each customer's system.
Practical Applications
The stainless-steel mesh filter cartridge Oring 226/Fin is widely used in domestic water, industrial water systems, engine oil filtration, chemical filtration, wastewater treatment, food processing, pharmaceutical manufacturing, or any environment requiring clean and safe fluid or air filtration. The 226/Fin connection is especially optimal for modern filtration devices, ensuring compatibility and superior operational efficiency.
Conclusion
The stainless-steel mesh filter cartridge Oring 226/Fin is a flexible, durable, and efficient solution for all industrial water and oil filtration needs. The product not only improves the quality of water and oil but also helps protect machinery systems, extend equipment lifespan, and saves maintenance costs. “Choose the stainless-steel mesh filter cartridge Oring 226/Fin – choose peace of mind, stability, and sustainable growth for your business.”
If you are looking for a reputable, high-quality industrial filtration product manufacturer at competitive prices, choose Dong Chau – DCF factory. We specialize in providing a wide variety of filter bags, cartridges, and mesh filters for multiple industries, meeting all strict requirements for performance and durability. Dong Chau guarantees superior quality, fast delivery, and dedicated service, bringing absolute peace of mind to customers. Contact us now at 02862702191 for free consultation and the best quotation – Dong Chau grows together with your business!
