Introduction

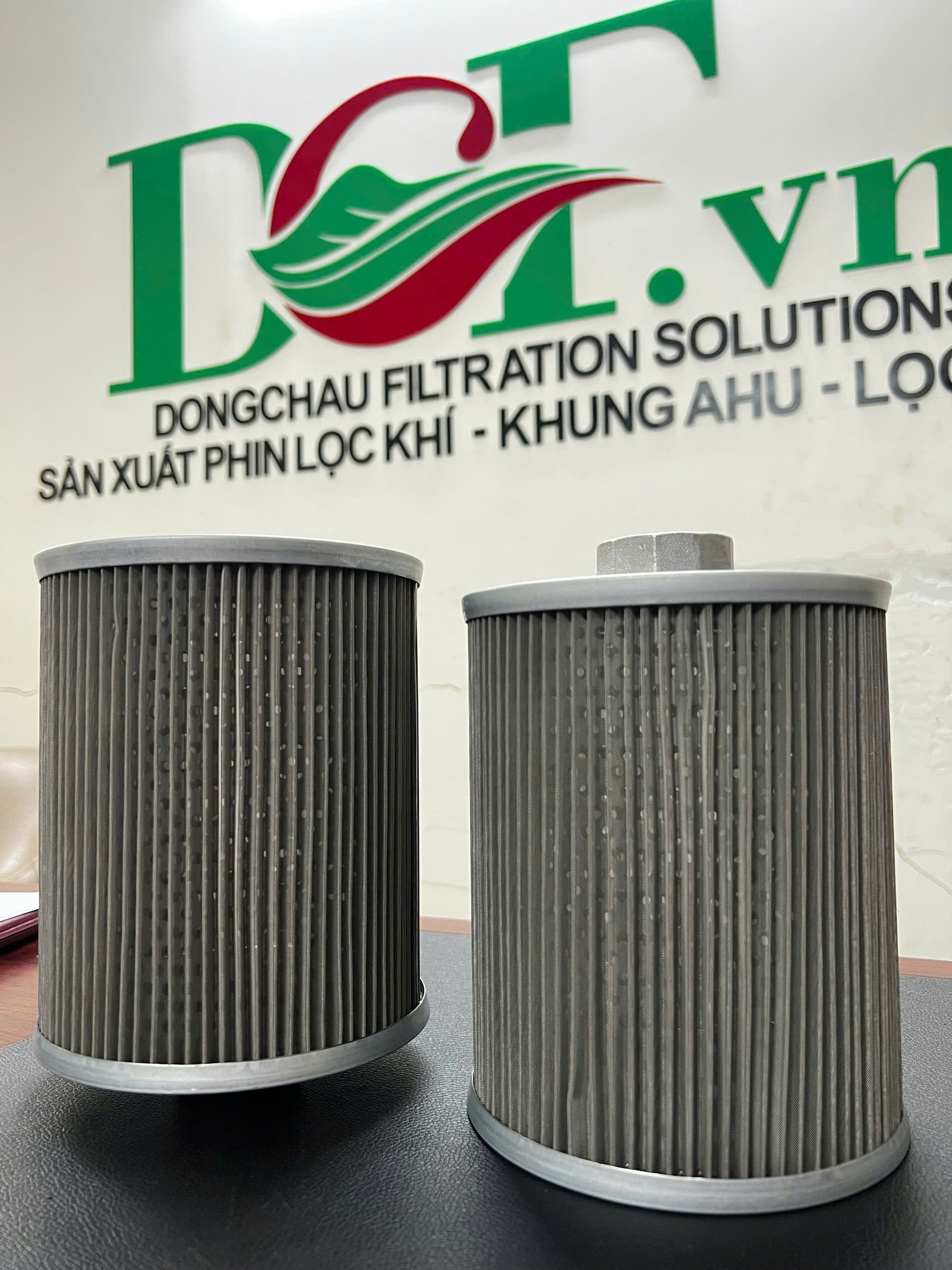

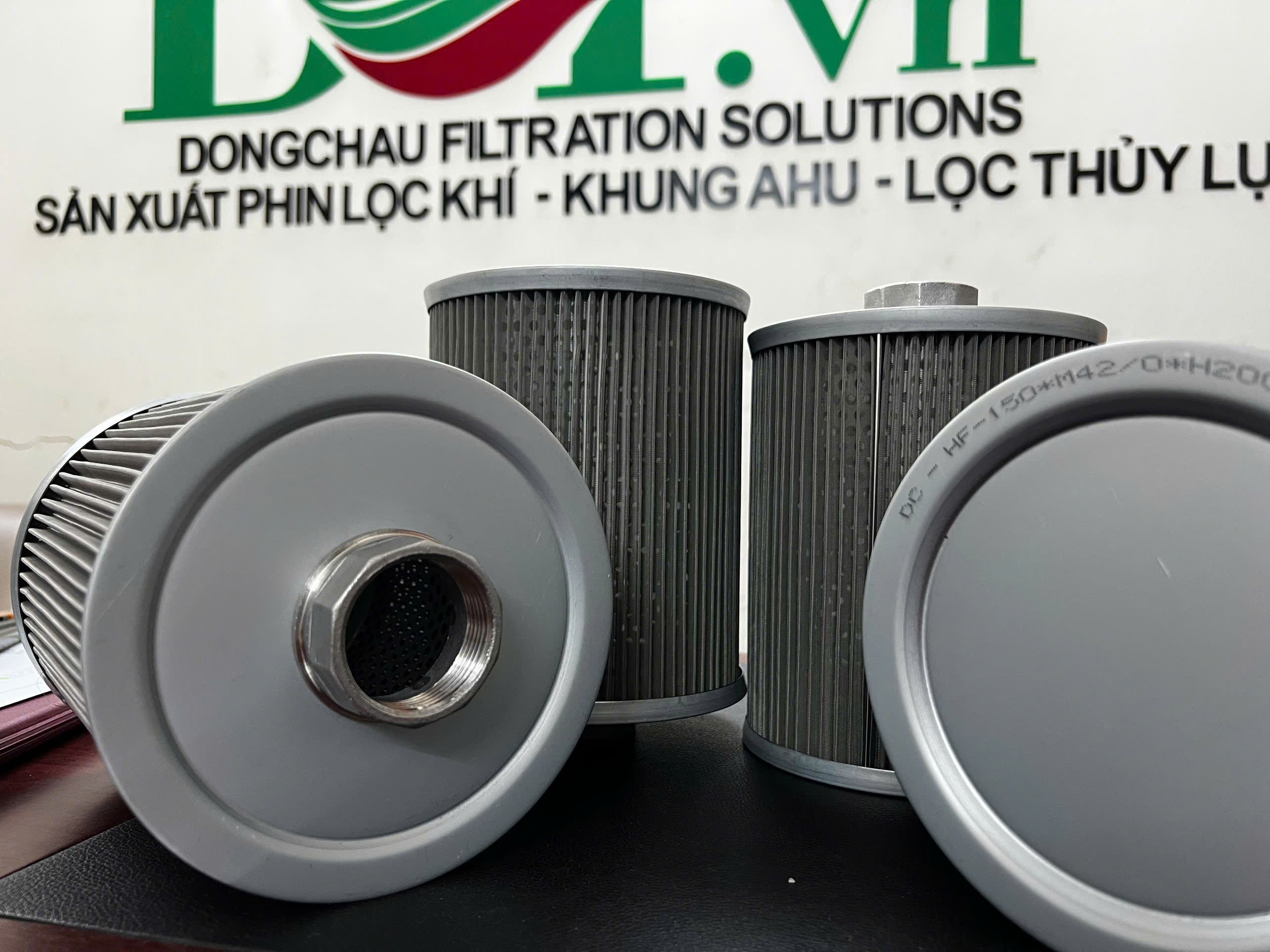

The hydraulic filter cartridge with a shallow corrugated stainless steel mesh, also known as a pleated filter element, is a high-performance filter product widely used in various industries. The product is made from high-quality materials such as 304, 316, 316L stainless steel mesh, and sintered stainless steel fiber felt.
This pleated filter element is specially designed to optimize the filtering capacity of the material. With a pleated structure, the filter element's surface area is significantly increased, enhancing filtration efficiency and extending service life. This makes the product an ideal choice for applications requiring high purity and sustainable performance. Additionally, the product can be easily cleaned and reused, saving operational and maintenance costs for businesses.
Technical Specifications
-
Filtration accuracy: 1-200 microns
-
Operating temperature: -50 ℃ -800 ℃
-
Diameter: 25-180mm
-
Length: 100mm-1200mm
-
Pressure resistance: 30-90MPa
The filter element size can be customized according to customer requirements to suit specific applications.
Key Features
-
High filtration efficiency with an accuracy of 1-200 microns, ensuring uniform surface filtration and high porosity.
-
Large filtration area and high porosity.
-
Withstands low and high temperatures, high pressure, excellent corrosion, and wear resistance.
-
Can be cleaned by ultrasonic, chemical, or other methods, and reused multiple times without frequent replacement.
Applications
-
Polymer industry: Synthetic fibers, plastics, film production, and other fields.
-
Petrochemical: Petrochemical, oil refining, paint purification, and similar applications.
-
Pharmaceutical and food: Synthesis and refining of pharmaceuticals and food, and catalyst recovery.
-
Machinery, ships: Oil production and cutting oil pipelines, gas flow control, natural gas.
-
Other fields: Applications in high temperature, high viscosity, and high-pressure environments.
Additional Information
-
Manufacturer: Dong Chau (DCF.vn)
-
Product weight: 40g
-
Packaging size: 12.7 x 5.1 x 3.7 cm
-
Country of origin: Vietnam
-
Product model: DC-HF
-
Material: Stainless steel
-
Battery required: No
Usage Instructions
The hydraulic suction oil filter element can be connected through a pipe and installed at the oil pump's suction port.
Packaging List
-
1 x Suction Oil Filter Cartridge
Outstanding Features
-
Stainless Steel: The main body of the product is made from high-quality stainless steel, ensuring superior durability and usability in harsh environments. Stainless steel is not only durable but also corrosion-resistant, extending the product's lifespan.
-
High Efficiency: The hydraulic suction oil filter is designed to reduce friction and wear, thereby reducing fuel consumption and operational costs. This product offers high economic efficiency by optimizing the oil filtration process.
-
Primary Purpose: This product filters out impurities and contaminants in the air, improving fuel quality and extending the lifespan of equipment. Filtering out impurities helps protect the engine and other critical components from damage.
-
Wide Application: The hydraulic suction oil filter can be used in various industries, including automotive, power generation, aerospace, construction machinery, and many other fields. The diverse applications make this product an ideal choice for various purposes.
-
Applicable Range: The product's effective filtration area is 100㎡, suitable for materials with mild corrosiveness and high precision requirements. Superior filtration capability helps meet stringent standards in many industries.
Technical Specifications
|
Model No. |
Flow LPM |
Thread IN BSP. |
Overall Length |
DIA. Nut Cap |
Nut A/F |
Screen Area (SQ. CMS) |
WT (Kgs.) |
|
DC3-HF-002 |
8 |
1/4” |
90 |
46 |
24 |
187 |
0.1 |
|
DC3-HF-003 |
12 |
3/8” |
90 |
46 |
24 |
187 |
0.1 |
|
DC3-HF-005 |
20 |
1/2” |
105 |
46 |
30 |
226 |
0.1 |
|
DC3-HF-007 |
28 |
3/4” |
109 |
64 |
35 |
406 |
0.2 |
|
DC3-HF-010 |
40 |
1” |
139 |
64 |
46 |
542 |
0.2 |
|
DC3-HF-015 |
60 |
1-1/4” |
139 |
86 |
51 |
929 |
0.3 |
|
DC3-HF-020 |
80 |
1-1/2” |
168 |
86 |
60 |
1161 |
0.35 |
|
DC3-HF-030 |
120 |
1-1/2” |
200 |
86 |
60 |
1393 |
0.4 |
Dong Chau is proud to be a leading manufacturer in the field of hydraulic oil filter elements. With advanced technology and a team of experienced experts, we are committed to delivering high-quality products with superior performance and long-lasting durability. Dong Chau's hydraulic oil filter elements not only help protect hydraulic systems from impurities and debris, but also optimize operational efficiency, reduce maintenance costs, and extend equipment lifespan. Choose Dong Chau to experience the difference and enhance your work efficiency.
