Product Overview

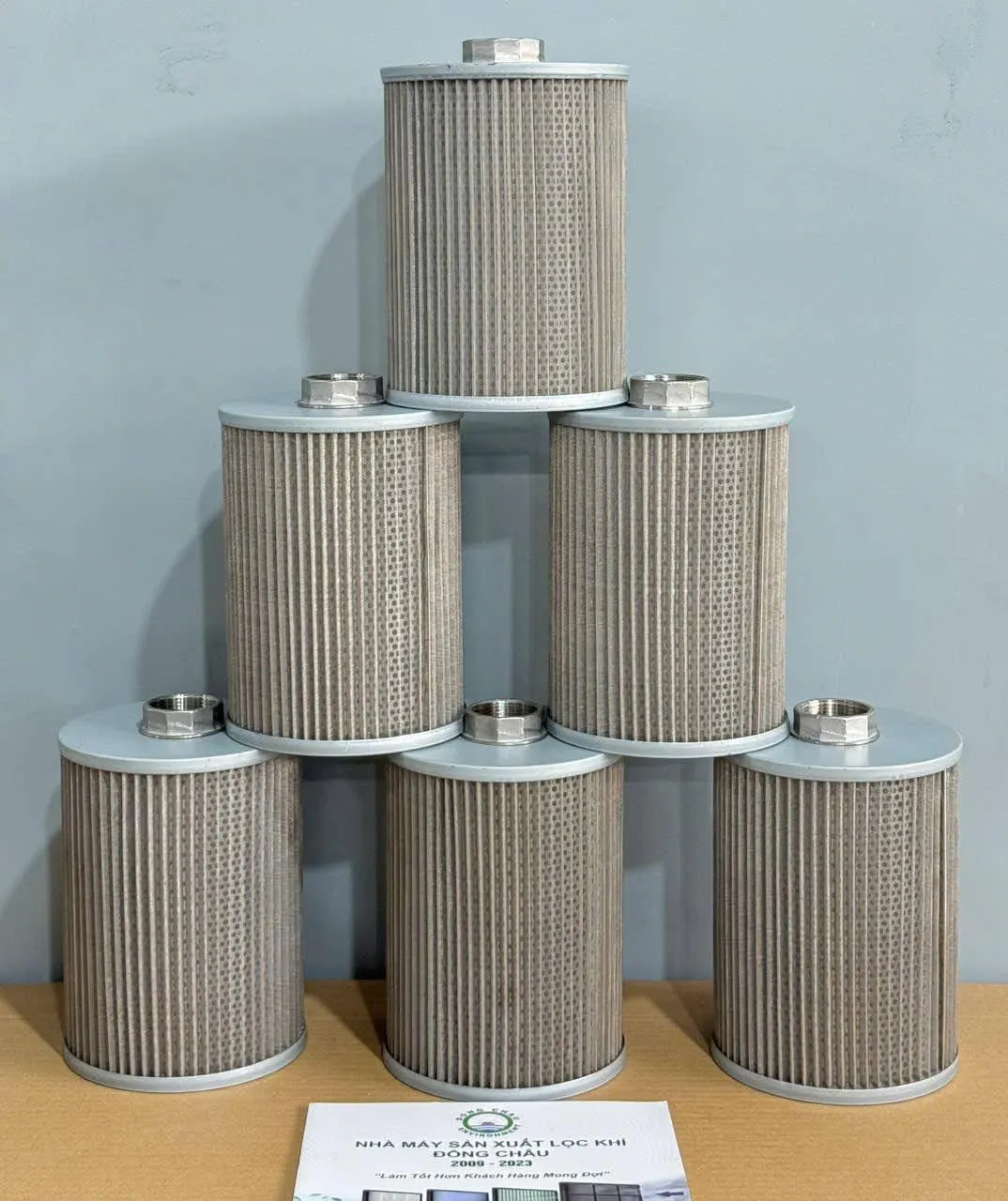

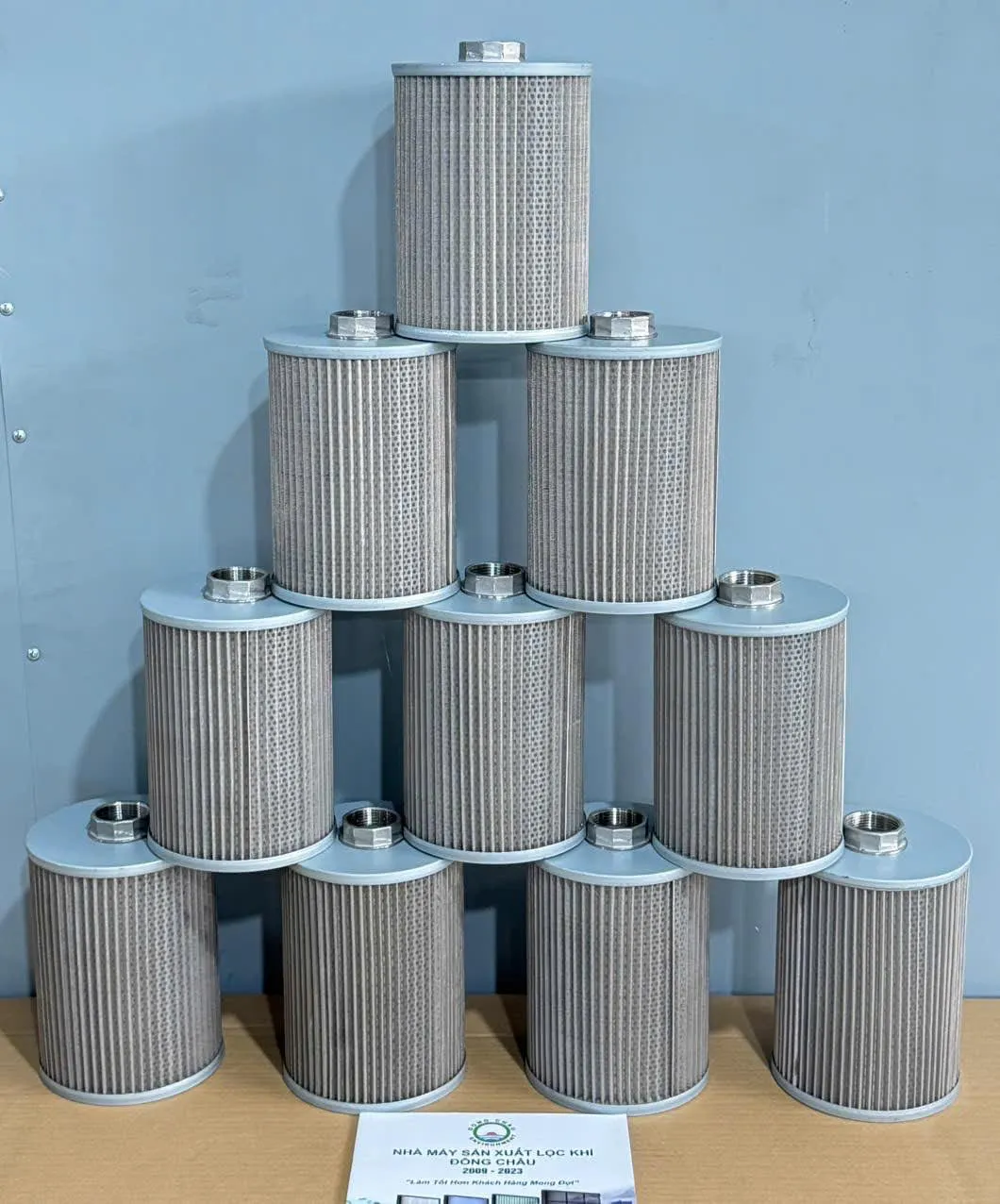

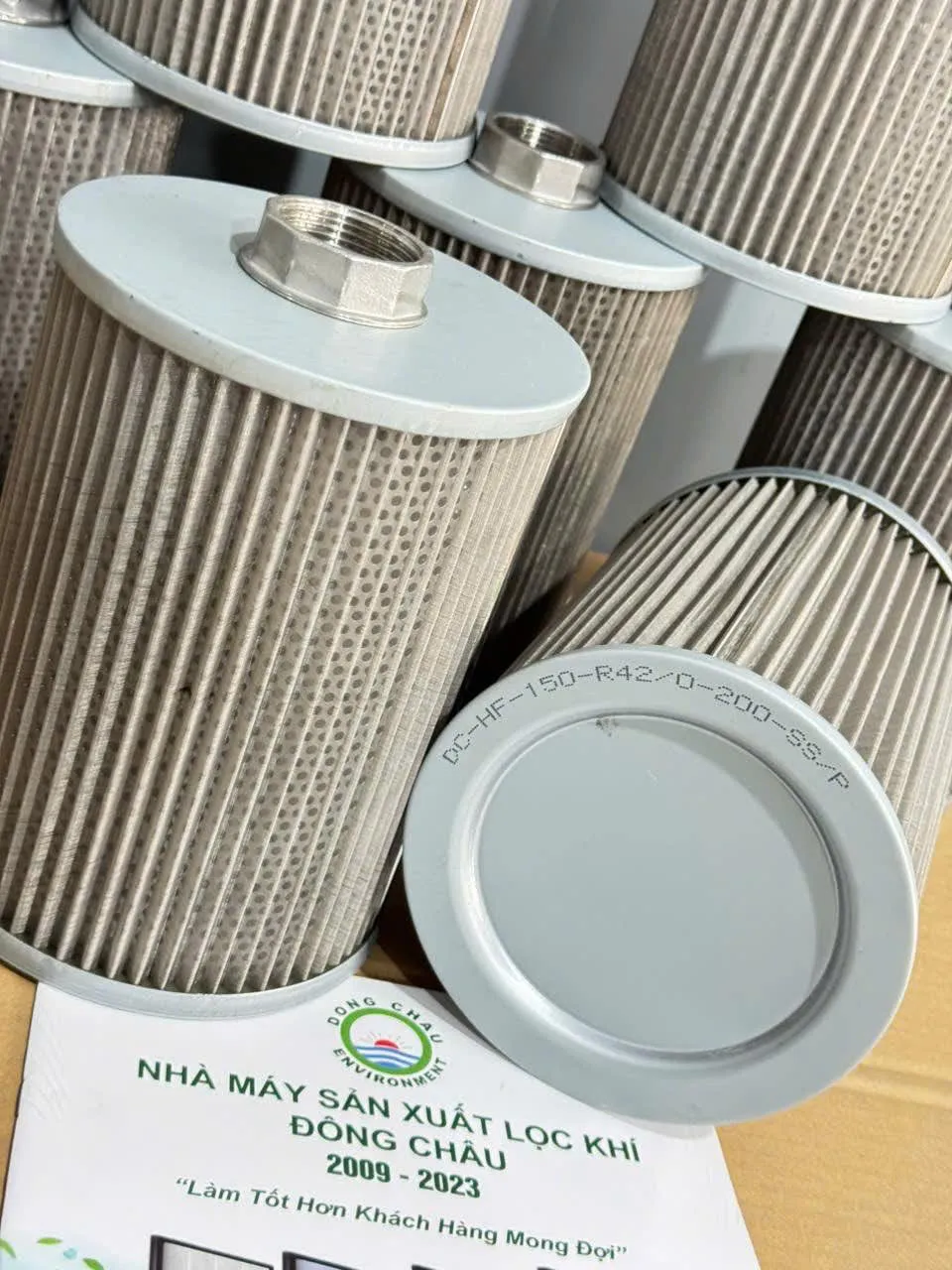

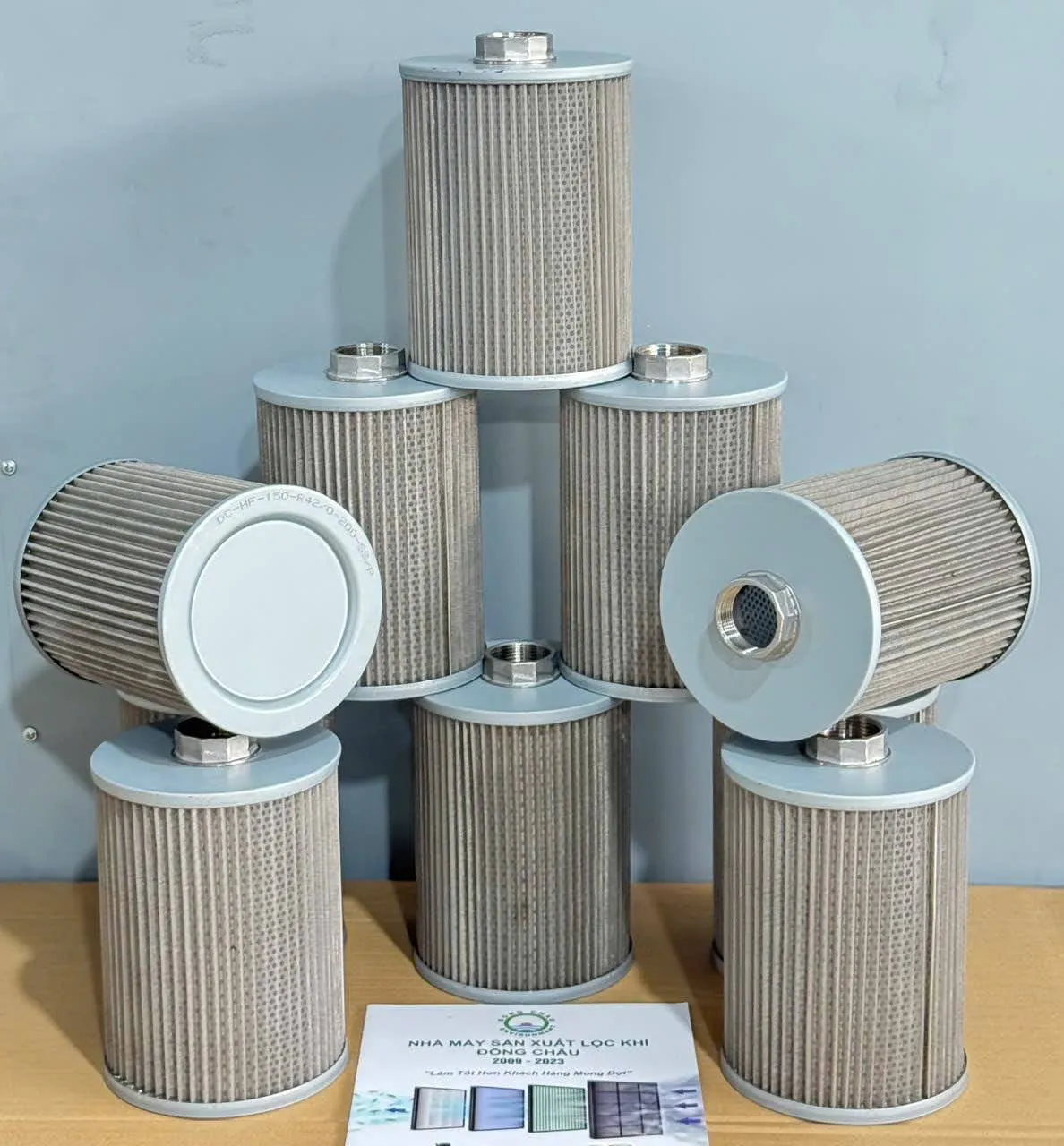

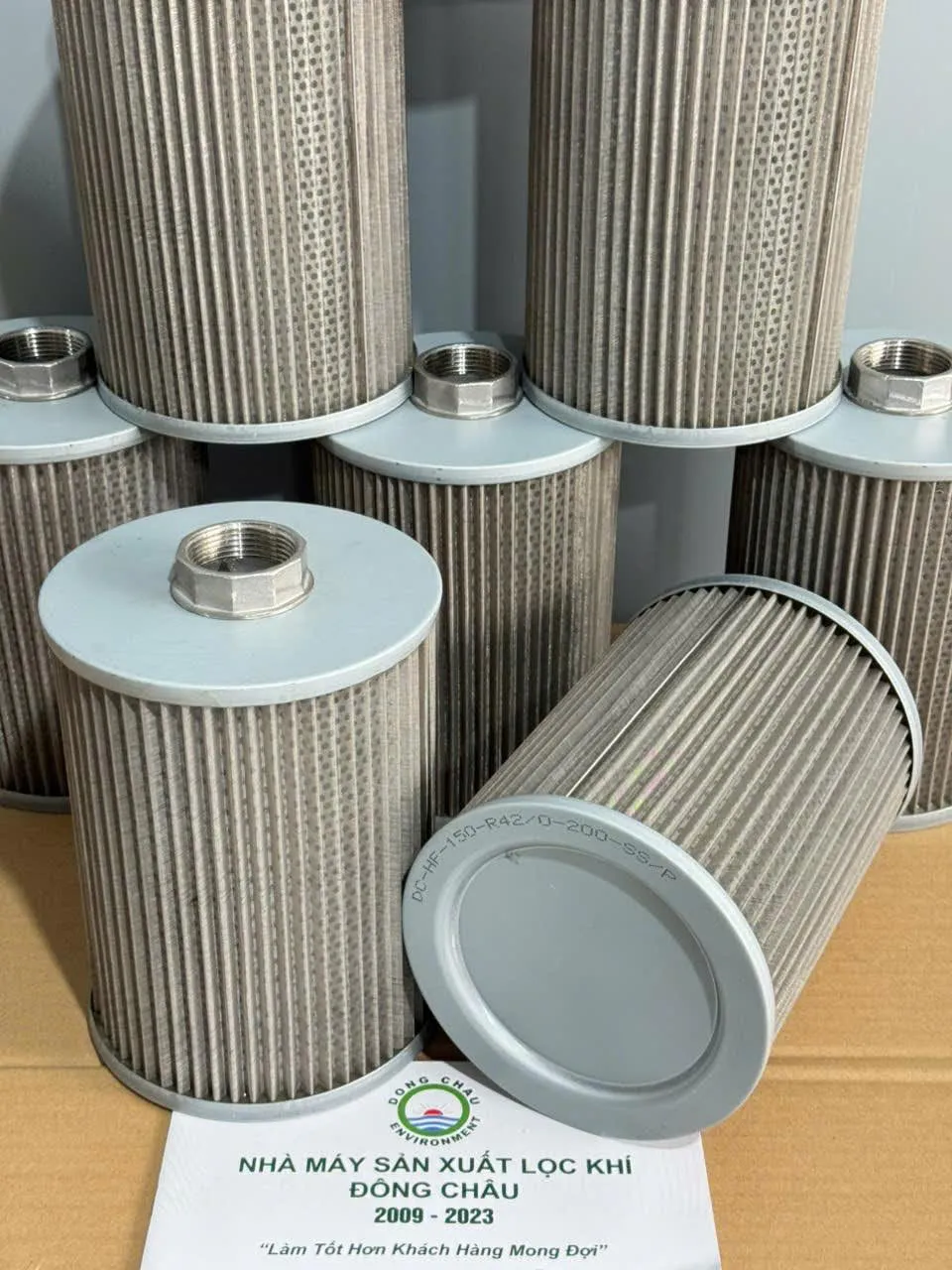

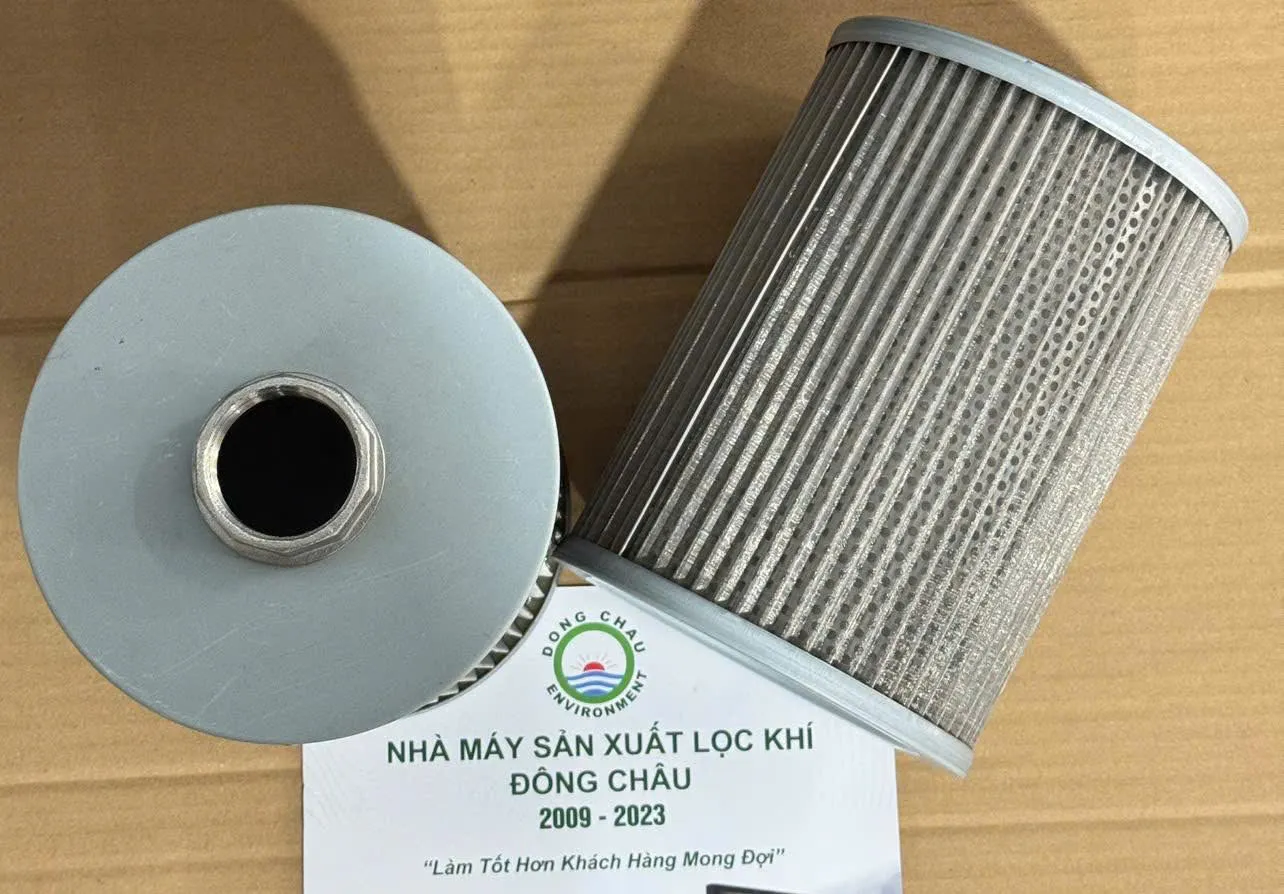

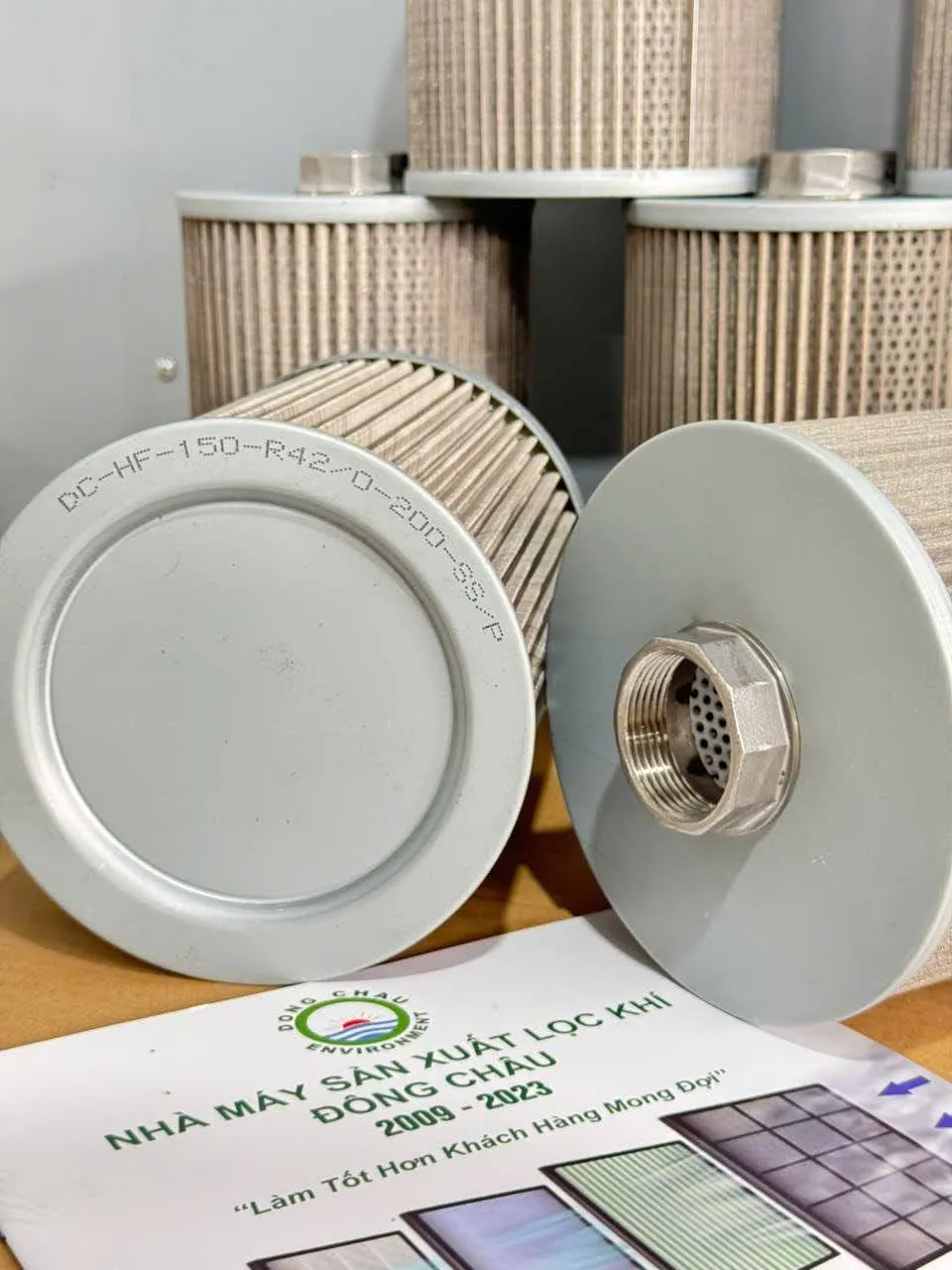

The Stainless Steel Mesh Oil Filter Cartridge OD150 x Thread 420 x H200mm stands out as an optimal oil filtration solution, specifically engineered for hydraulic systems, industrial machinery, and advanced technical applications. Its design features a high-quality stainless steel mesh on one side and a perforated stainless steel plate inside, enhancing both filtration capacity and exceptional durability throughout use.
In addition to its technical advantages and wide range of uses, the OD150 x Thread 420 x H200mm stainless steel mesh oil filter cartridge helps businesses optimize operating costs by enabling multiple reuses and reducing the risk of equipment damage caused by contaminants. The modern design is easy to integrate into various systems, supporting higher efficiency and safety in production processes, making it a trusted choice across many contemporary industries.
Key Technical Features
-
Dimensions: Outer diameter (OD) 150mm, height 200mm (excluding end caps), thread size 420.
-

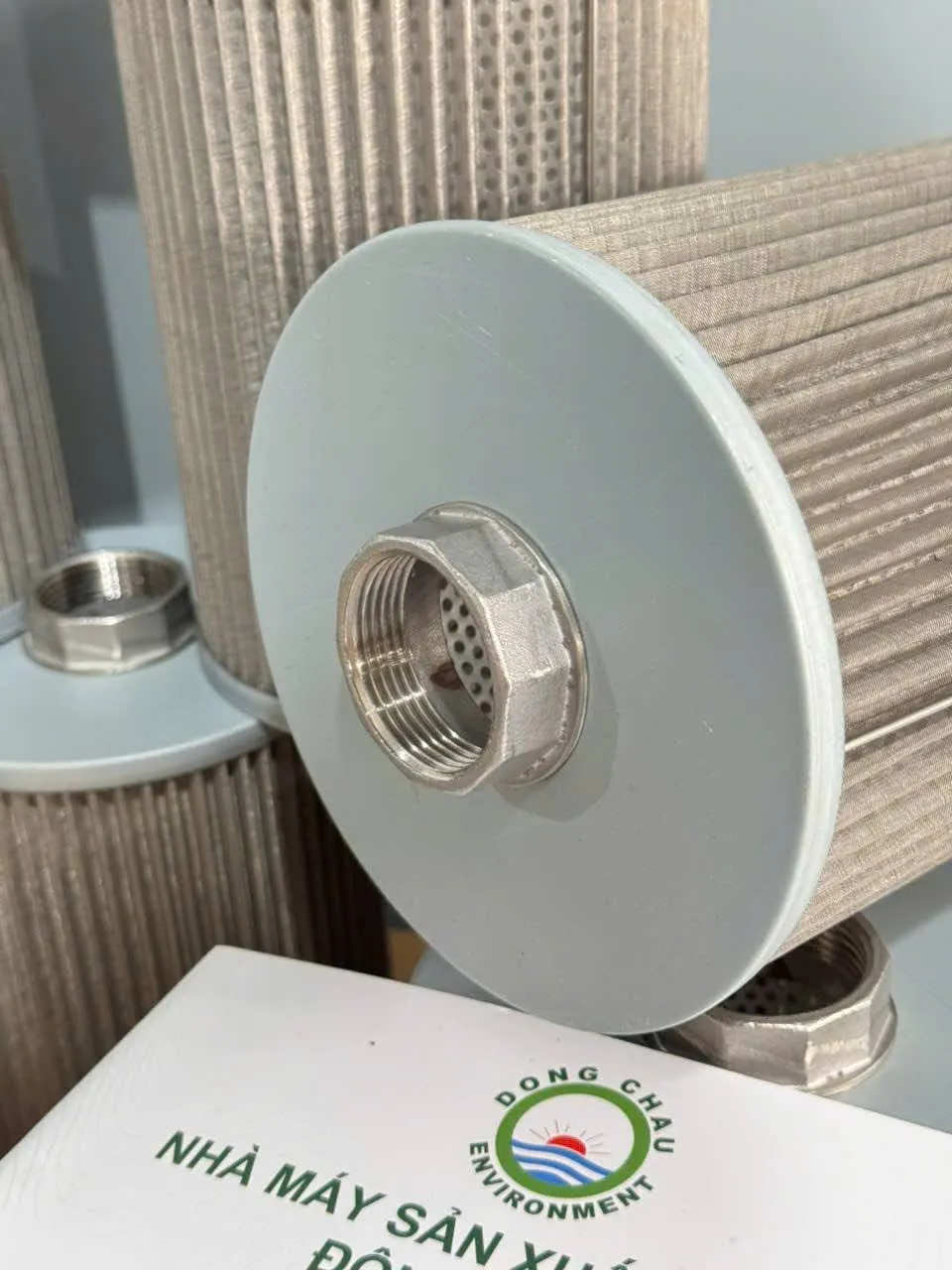

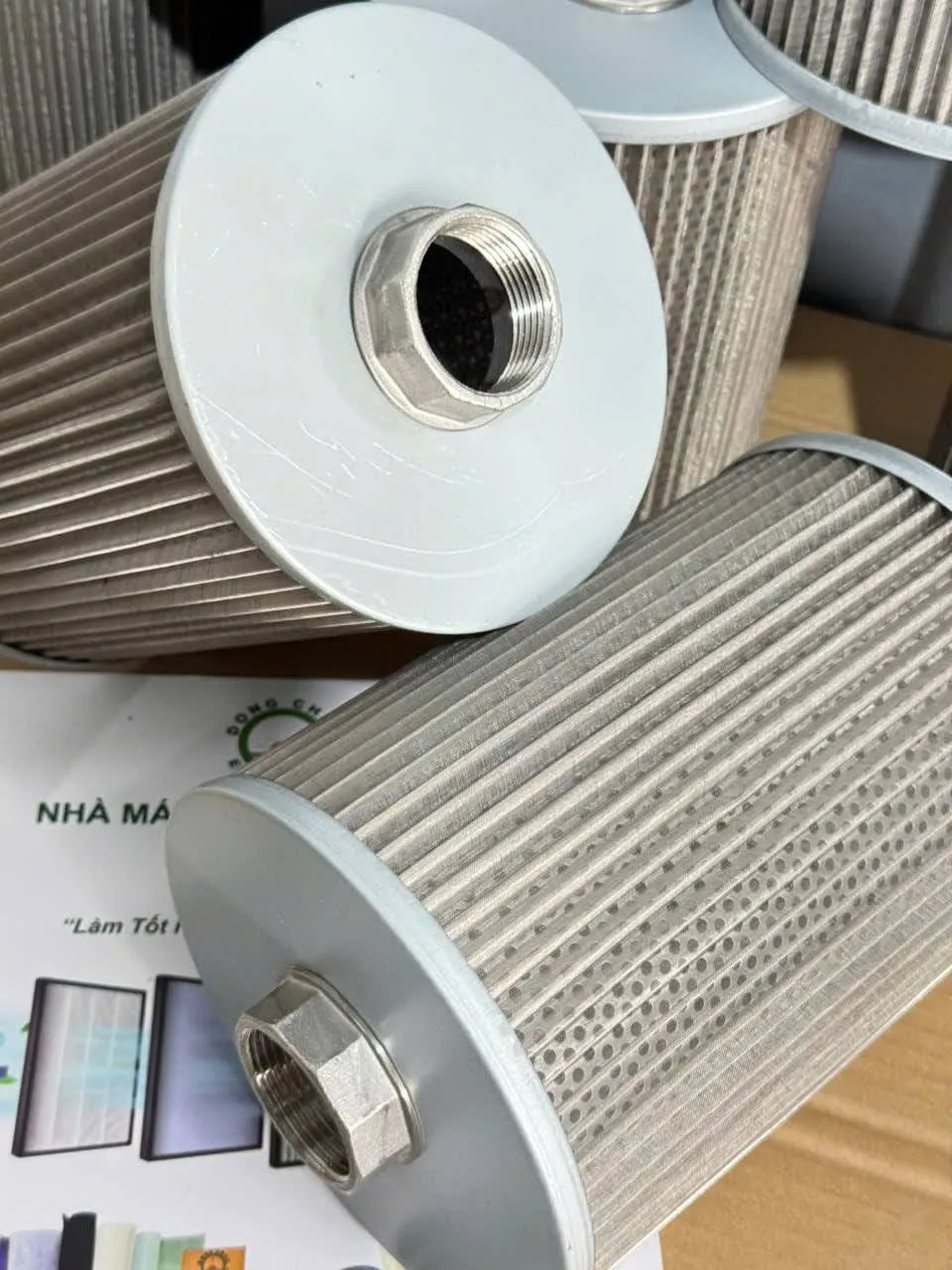

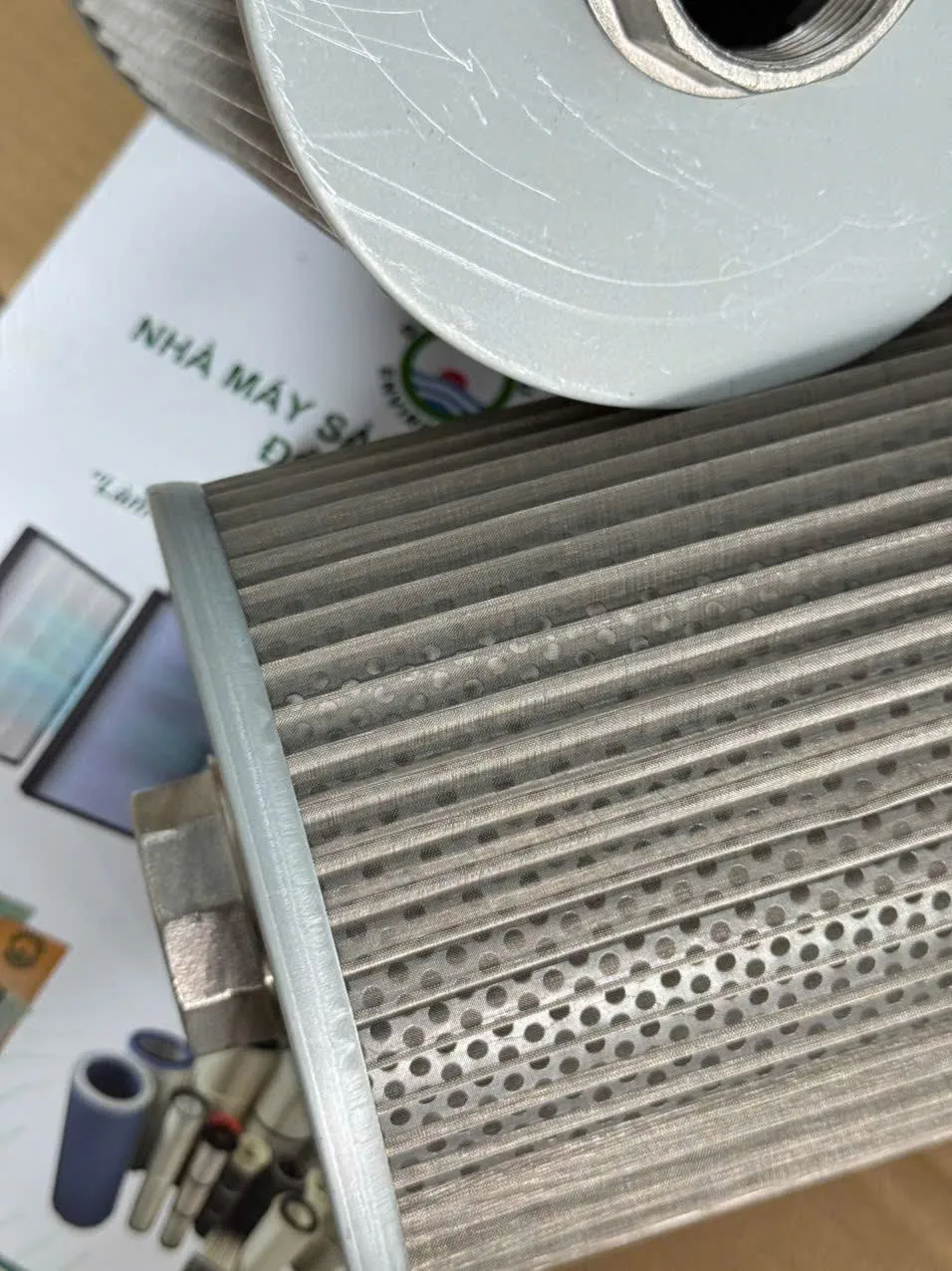

Construction: One side features a sturdy stainless steel mesh, while the interior has a perforated stainless steel plate to increase filtration area and structural rigidity.
-
Material: Stainless steel 304/316/316L for both mesh and perforated plate, ensuring corrosion resistance, oxidation protection, and durability in harsh environments.
-
Filtration Precision: Customizable from 1 to 200 microns, meeting various cleanliness requirements for oils and liquids.
-
Temperature & Pressure Resistance: Operates reliably across a temperature range from -50℃ to 800℃, withstanding pressures up to 90MPa.
Outstanding Advantages
-
High Filtration Efficiency: The wave-shaped stainless steel mesh design increases filtration surface area, enhancing the ability to capture contaminants without reducing flow rate.
-
Easy Cleaning & Reusability: Can be cleaned using chemicals, ultrasonic methods, or mechanical approaches, allowing for repeated use without compromising filtration quality.
-
Resistant to Harsh Environments: The filter cartridge offers excellent resistance to chemicals, high temperatures, extreme pressure, and corrosive conditions.
-
Long Service Life: Thanks to high-grade stainless steel materials and robust construction, the product is exceptionally durable, minimizing maintenance and replacement costs.
-
Flexible Design: Can be custom-manufactured to specific requirements regarding size, thread, mesh thickness, etc., fitting a wide variety of systems and machines.
Practical Applications
-
Oil & Chemical Industries: Used for oil and petrochemical filtration, protecting pumps and equipment from harmful impurities.
-
Hydraulic Machinery & Generators: Ensures clean oil flow, prolonging the lifespan of engines and machine components.
-
Pharmaceutical & Food Processing: Filters liquids requiring high purity, recovers catalysts.
-
Automotive, Aviation, Construction: Applied in fuel, air, and hydraulic oil filtration systems.
-
Other Fields: Suitable for high temperature and pressure environments demanding superior durability and filtration performance.
Installation & Usage Instructions
-
Thoroughly clean the connector before installing the filter cartridge to prevent contamination.
-
Connect the cartridge using the 420 thread to the piping system or oil pump intake port.
-
Ensure correct installation orientation and check for tightness before operation.
-
Periodically inspect the filter cartridge; clean or replace as needed to maintain optimal filtration performance.
Additional Information
|
Model No. |
Flow LPM |
Thread IN BSP. |
Overall Length |
DIA. Nut Cap |
Nut A/F |
Screen Area (SQ. CMS) |
WT (Kgs.) |
|
DC3-HF-002 |
8 |
1/4” |
90 |
46 |
24 |
187 |
0.1 |
|
DC3-HF-003 |
12 |
3/8” |
90 |
46 |
24 |
187 |
0.1 |
|
DC3-HF-005 |
20 |
1/2” |
105 |
46 |
30 |
226 |
0.1 |
|
DC3-HF-007 |
28 |
3/4” |
109 |
64 |
35 |
406 |
0.2 |
|
DC3-HF-010 |
40 |
1” |
139 |
64 |
46 |
542 |
0.2 |
|
DC3-HF-015 |
60 |
1-1/4” |
139 |
86 |
51 |
929 |
0.3 |
|
DC3-HF-020 |
80 |
1-1/2” |
168 |
86 |
60 |
1161 |
0.35 |
|
DC3-HF-030 |
120 |
1-1/2” |
200 |
86 |
60 |
1393 |
0.4 |
-
Product Weight: Approximately 40g (may vary depending on custom configuration).
-
Reference Models: DC-HF or equivalent codes as per customer requirements.
-
Origin: Manufactured in Vietnam to meet international quality standards.
Conclusion
With its optimized design, premium materials, superior filtration performance, and versatile application, the OD150 x Thread 420 x H200mm stainless steel mesh oil filter cartridge is the ideal choice for businesses seeking to maximize operational efficiency, protect equipment, and save on long-term maintenance costs. “You get what you pay for”—investing in a quality oil filter cartridge is an investment in the safety and longevity of your entire system.
