General Introduction
The coarse dust filter frame with anti-static coating is a specialized product in the field of air filtration, especially suited for environments with high chemical corrosion, humidity, or salt-laden air such as chemical plants, coastal areas, laboratories, or industrial workshops. The anti-static coating effectively prevents dust adhesion while enhancing oxidation resistance and reducing corrosion caused by chemicals such as acids and bases.
In addition, regular maintenance and inspection of the filter frame are key factors in ensuring stable system operation and preventing blockages or performance loss due to long-term dust accumulation. Facility managers should develop a maintenance schedule tailored to usage frequency and environmental conditions, and select products from reputable suppliers to ensure quality and avoid unnecessary costs.
Structure and Materials
-

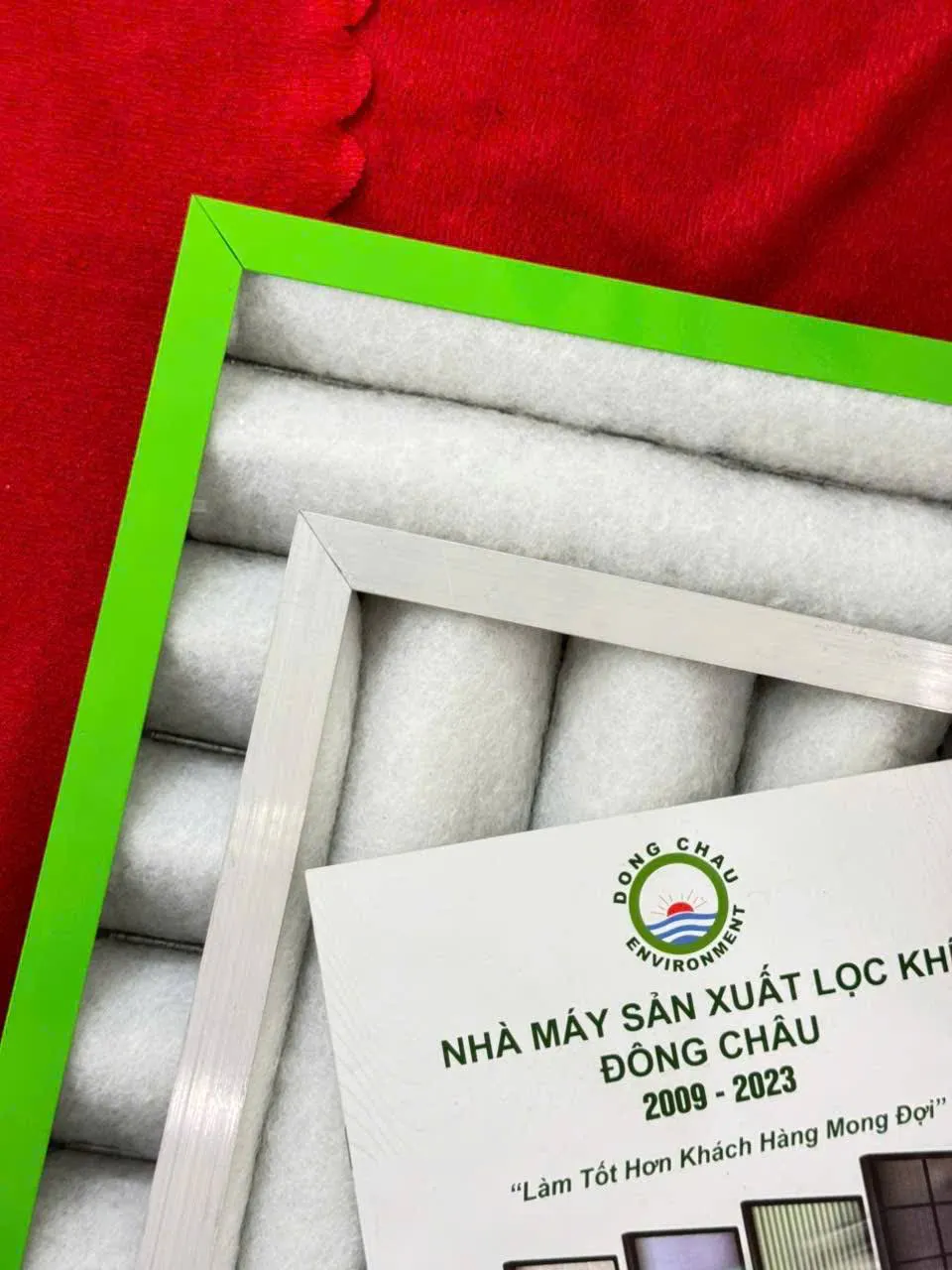

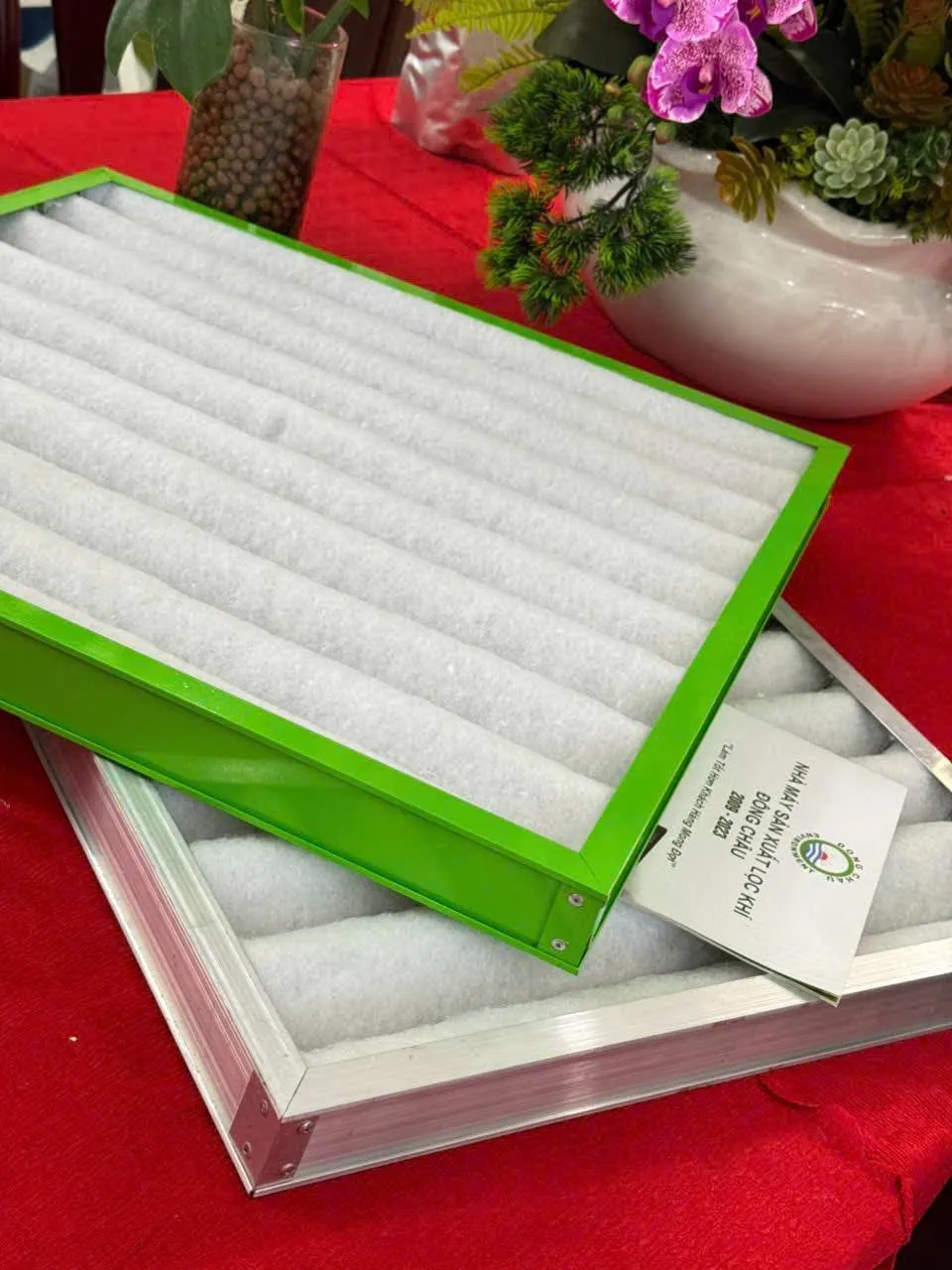

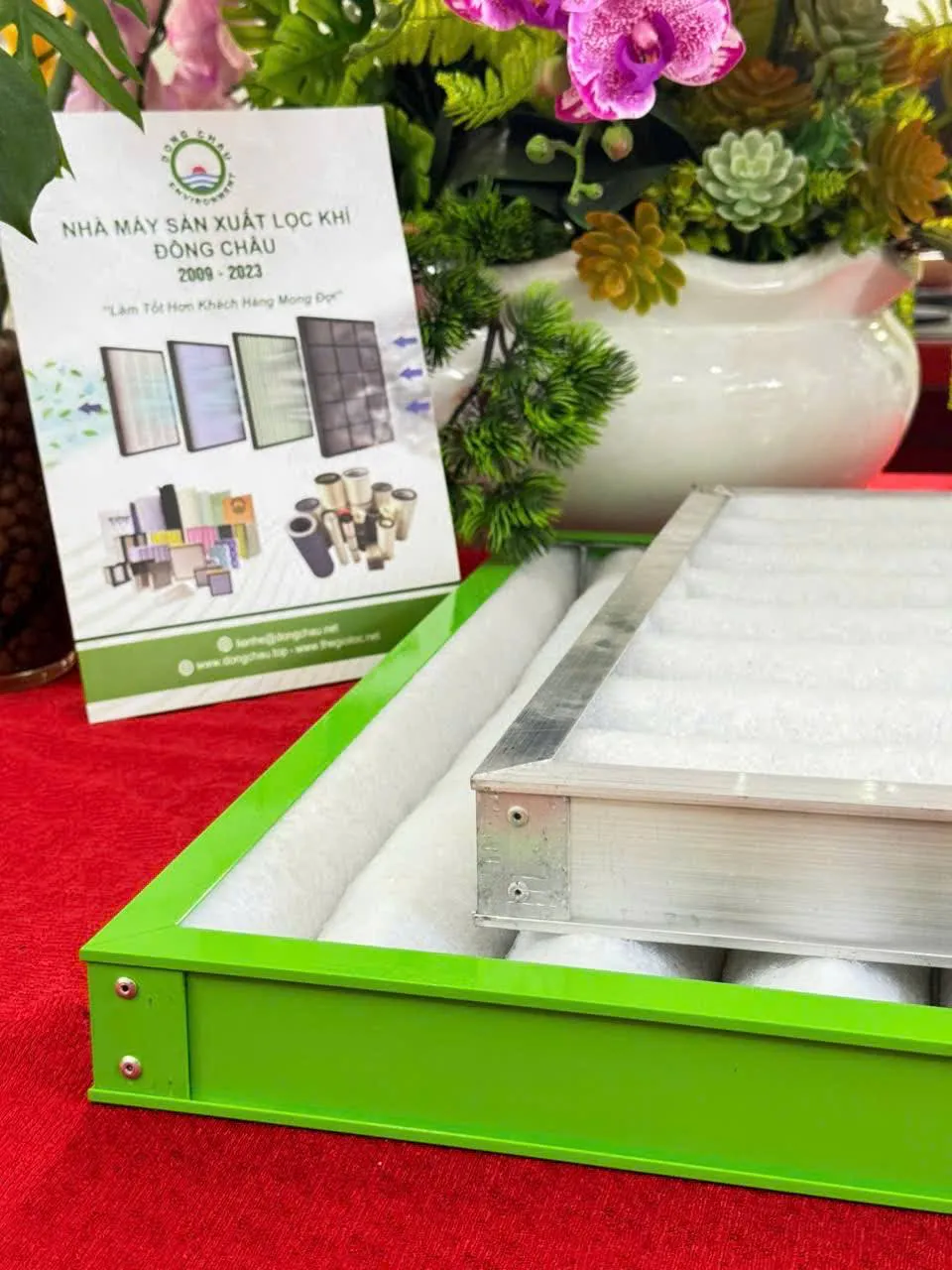

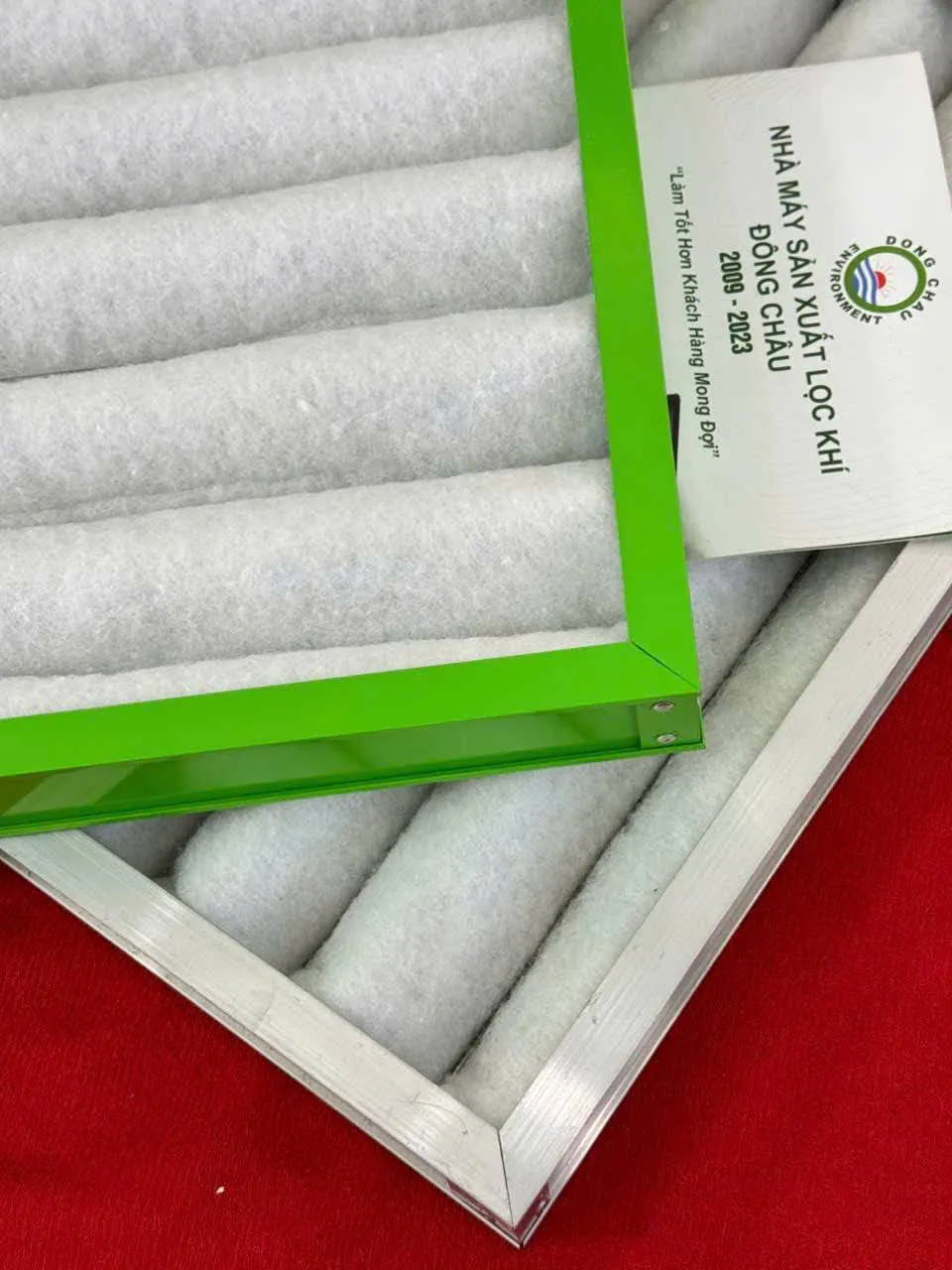

Frame: Made from PVC plastic or metal with an anti-static coating, this material increases durability, prevents mold, salt, and chemical damage, and reduces the risk of corrosion.
-
Filter Media: Utilizes synthetic fibers with varying densities, designed to effectively remove particles larger than 10 μm such as leaves, insects, hair, sand, ash, pollen, and spores.
-
Sealing Capability: The filter is securely attached to the frame, ensuring no air leakage.
Technical Specifications of Anti-Static Panel Filter Frame
Types of Metal Frame Panel Filters G4, Polyester
|
Thickness |
Dimensions (W x D) |
Volume |
Weight |
Type |
Tags |
|
48 mm |
287 mm x 592 mm |
0.009 m³ |
0.50 kg |
Metal Frame Panel Filter |
G4, polyester |
|
48 mm |
500 mm x 500 mm |
0.0125 m³ |
0.7 kg |
Metal Frame Panel Filter |
G4, polyester |
|
48 mm |
592 mm x 592 mm |
0.018 m³ |
1.00 kg |
Metal Frame Panel Filter |
G4, polyester |
G4 metal frame panel filters use polyester material with a standard thickness of 48 mm and are manufactured in various sizes to meet the diverse needs of ventilation and air conditioning systems. The volume and weight of each filter type are optimized to ensure efficient coarse dust filtration, while also allowing for easy installation and replacement in industrial, commercial, or residential settings. These products are suitable for applications that require stable filtration performance and energy-efficient operation.
Outstanding Features
-
Anti-static coating: Prevents dust from clinging to the frame surface, reduces the risk of static discharge, and limits long-term dust build-up.
-
Oxidation and chemical corrosion resistance: Protects the frame from the effects of acid, base vapors, sea salt, and other industrial chemicals, extending product lifespan.
-
High durability and flame resistance: The filter media meets safety standards (F1 according to DIN 53438), withstands temperatures below 80°C, and does not deform due to high humidity.
-
International filtration efficiency: Complies with EN 779:2012 (G4) and ISO 16890 (ISO Coarse 70%), capturing up to 70% of coarse dust particles with stable long-term efficiency.
-
Low resistance, energy saving: Optimized design reduces airflow resistance, resulting in energy-efficient operation.
Practical Applications
This product is ideal for installation in ventilation, air conditioning, and heat recovery (recuperator) systems in office buildings, factories, clean rooms, hospitals, schools, hotels, shopping centers, coastal areas, or facilities involved in chemical, food, or pharmaceutical production and processing. Additionally, the filter frame is suitable for areas with high levels of large dust particles, corrosive chemical vapors, or unique humid environments.
Selection and Replacement Guide
-
Select a filter frame that matches the size, design of your equipment, and the requirements of the operating environment.
-
Prioritize installing coarse dust filters at the air intake, combined with fine/ultra-fine filters for maximum filtration efficiency.
-
Follow the manufacturer's instructions regarding installation position (arrow direction on the frame) and replacement cycle to maintain filtration performance and equipment longevity.
Conclusion
The coarse dust filter frame with anti-static coating is an effective solution for protecting health, improving air quality, and ensuring sustainable operation of ventilation and air conditioning systems in harsh environments rich in corrosive chemicals, salt vapors, and high humidity. Choosing and using the right specialized filter frame will save maintenance costs, reduce incidents, and increase system longevity.
If you are seeking a cost-effective, high-quality industrial filtration solution, Dong Chau is the trusted choice. We specialize in manufacturing dust and air filters for factories, clean rooms, hospitals, and many other industries, meeting international standards, ensuring stable operation, and minimizing costs. Contact us at 02862702191 for advice and the best quotation from Dong Chau – "Reputation builds trust, quality creates success."
