PE Cartridge Dust Filter Core: Advanced Dust Filtration Solution for Industrial Plants
Discover superior dust filtration technology with PE cartridge cores coated with PTFE for optimal efficiency
Introduction to PE Cartridge Dust Filter Core
As industries place increasing emphasis on environmental protection and production efficiency, selecting the right dust filtration solution not only safeguards machinery but also ensures compliance with emission standards. The PE cartridge dust filter core is an innovative product that combines advanced dry filtration materials with a pleated tube design, enhancing filtration efficiency, reducing operating costs, and prolonging filter system lifespan.
In addition to its outstanding benefits, the PE cartridge dust filter core offers flexible adaptability to both large and small dust extraction systems. It is suitable for a wide range of industries, including cement manufacturing, metallurgy, wood processing, and food production. The combination of premium materials and modern design technology helps improve indoor air quality and minimize negative impacts on the surrounding environment, demonstrating a commitment to protecting workers and community health. This enables businesses to make long-term investments with confidence while building a professional and socially responsible image.

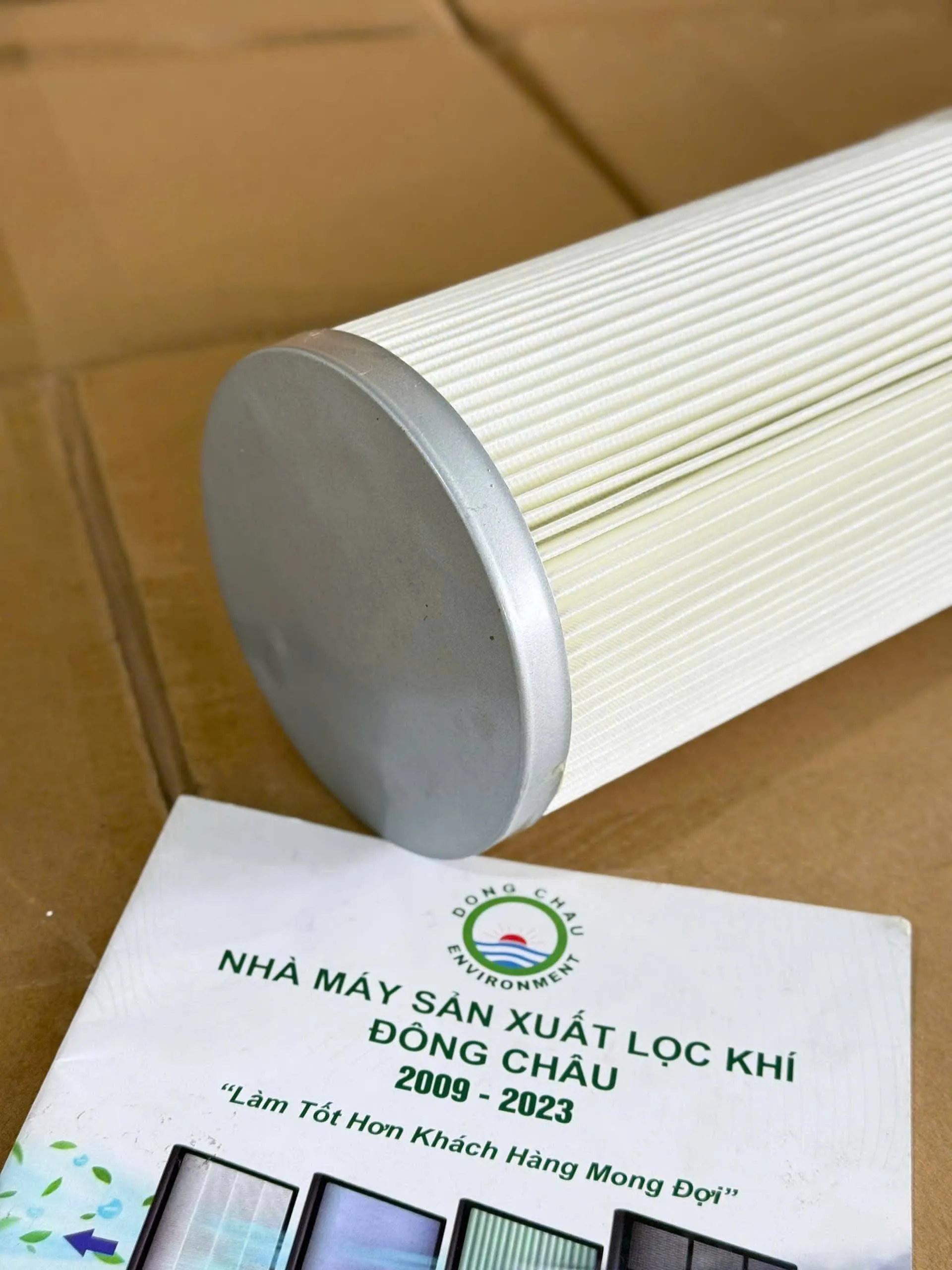

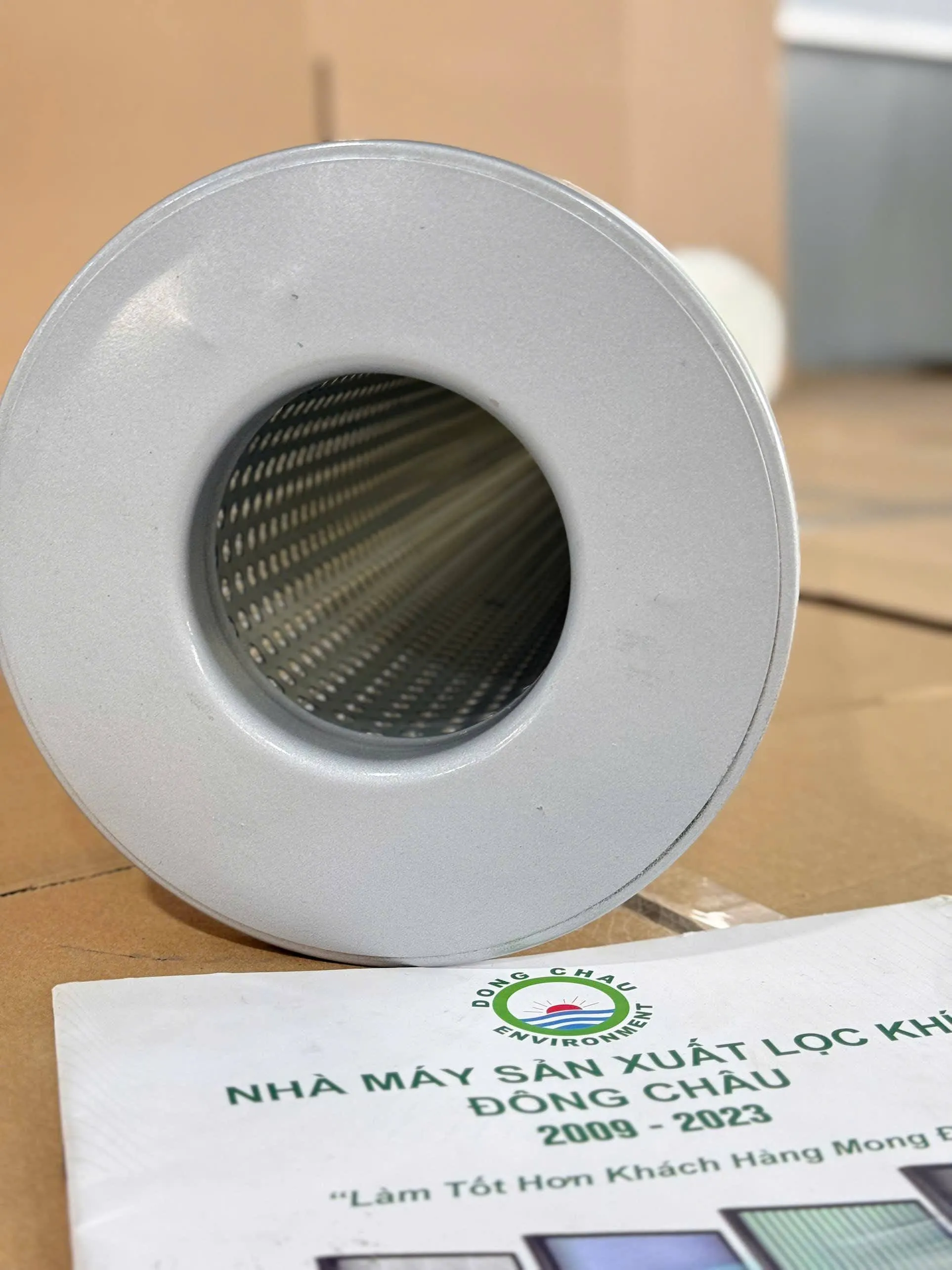

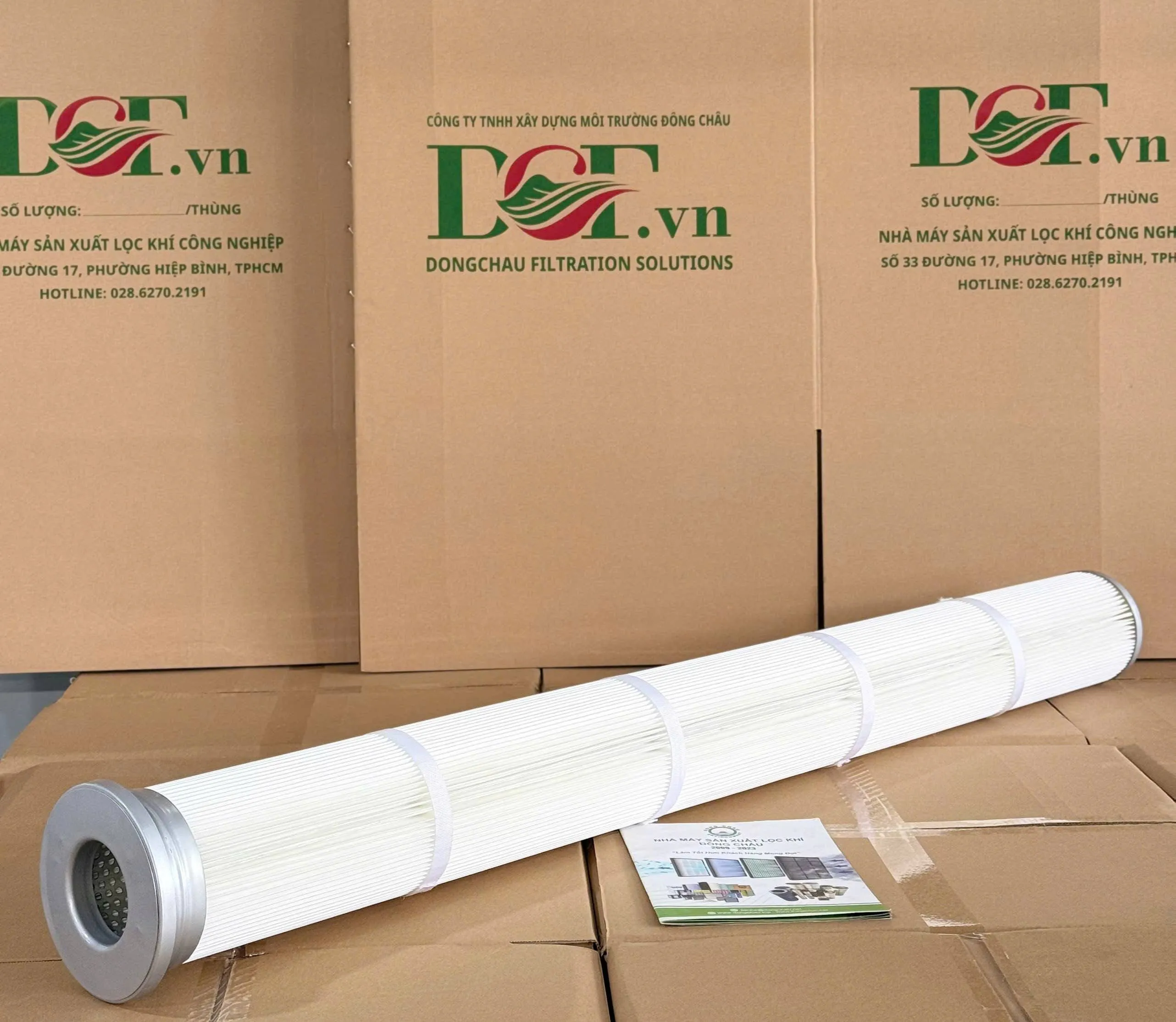

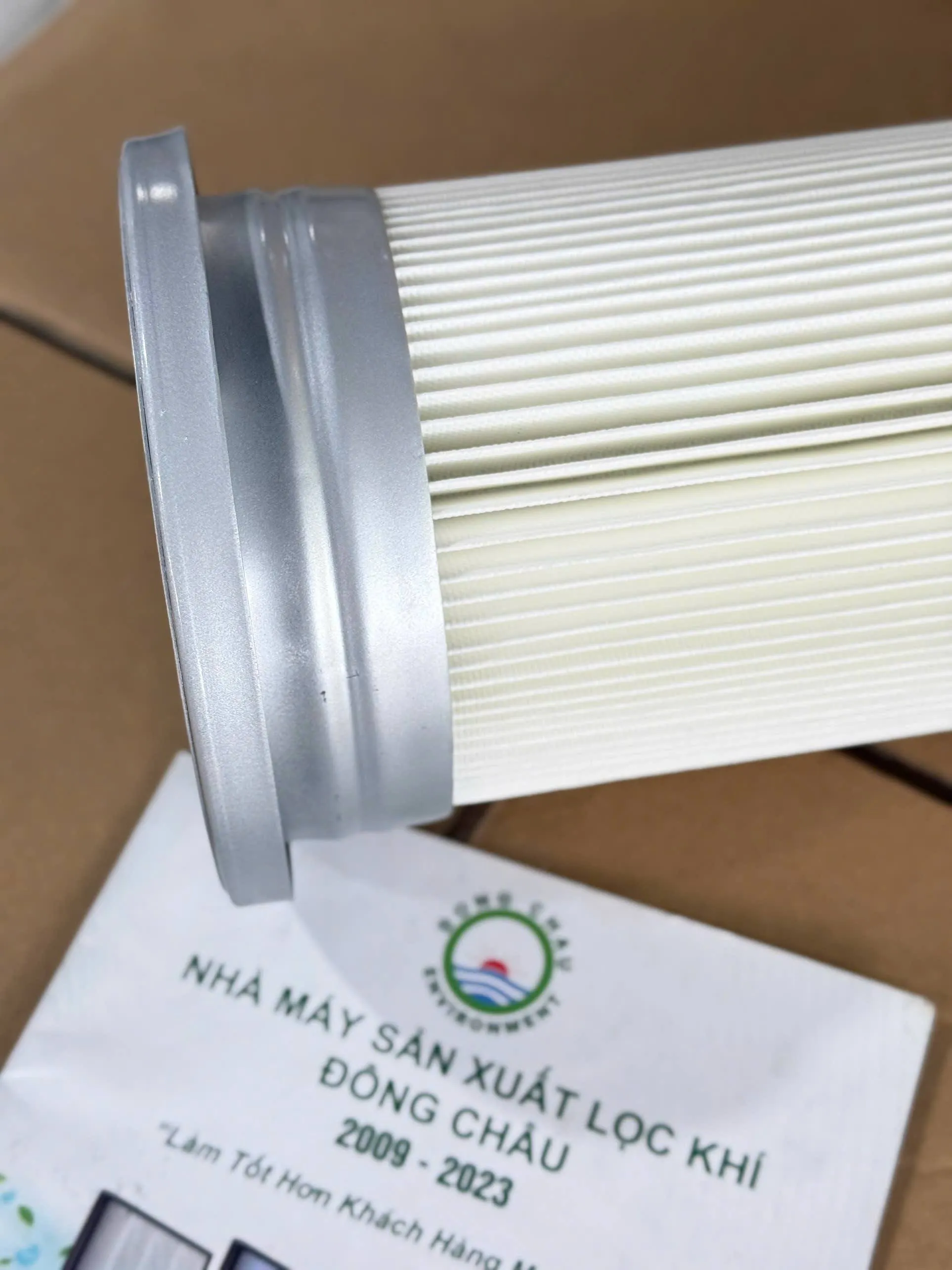

The PE cartridge dust filter core, model DC-ACVT178-146-85/0-1500-PE*XT by DCF, merges cutting-edge dry filtration material technology with intelligent design, delivering superior dust filtration performance for modern industries. The product dimensions are OD 146 x ID 85/0 x H1500mm, with a 178mm round rim, one inner mesh layer, and four shaping bands—optimized for installation and operation in various industrial air filtration systems.
Outstanding Features of the PE Cartridge Dust Filter Core
-
Advanced filtration material: Utilizes a porous PE (polyethylene) matrix coated with PTFE, providing a pure filtration surface, high abrasion resistance, and easy cleaning.
-
Pleated cylindrical structure: Smart design increases filtration area and optimizes airflow, serving as a perfect replacement for traditional filter bags and bag cages.
-
Superior filtration efficiency: Achieves up to 99.999% efficiency, effectively capturing ultrafine dust particles as small as 0.1μm, and meeting emission standards of <1mg/Nm³.
-
Convenient and cost-saving: Quick installation, direct replacement for filter bags without modifying the dust collector structure, reducing downtime and operational costs.
-
Long lifespan: Filter core lifespan up to 10 years, maintaining stable filtration performance throughout usage.
-
Self-lubricating and water-resistant: non-fibrous, easy to clean, ideal for abrasive dust, ultrafine dust, and high-humidity environments.
Product Specifications
|
Product Code |
Dimensions |
Material |
Filtration Efficiency |
Operating Temperature |
Mesh |
Shaping Bands |
|
DC-ACVT178-146-85/0-1500-PE*XT |
OD 146 x ID 85/0 x H1500mm, 178mm rim |
PE coated with PTFE |
99.999% @ 1μm |
70 – 100°C |
1 inner mesh layer |
4 bands |
Reference Specifications
|
Model Code |
Filtration Area (m²) |
|
DC-ACVT125-1500 |
1.49 |
|
DC-ACVT125-750 |
0.73 |
|
DC-ACVT125-500 |
0.48 |
|
DC-ACVT133-1500* |
1.62 |
|
DC-ACVT133-750* |
0.80 |
|
DC-ACVT133-500* |
0.53 |
|
DC-ACVT162-1500 |
2.03 |
|
DC-ACVT162-750 |
1.00 |
|
DC-ACVT162-500 |
0.66 |
*Models can be customized according to customer requirements.
Filter Media Technical Data
|
Media Code |
Efficiency (%) |
Operating Temperature (℃) |
Static Resistance (Ω) |
A/C Ratio (m/min) |
Air Resistance (Pa) |
|
NT1/AT1 |
99.999 @ 1μm |
70 |
N/A / ≤ 106 |
0.8 – 1.3 |
1500 – 2000 |
|
NT2/AT2 |
99.999 @ 1μm |
100 |
N/A / ≤ 106 |
0.8 – 1.3 |
1500 – 2000 |
When ordering, please specify “Dimensions + Media Code”. Example: Sinter-cartridge, Type: DC-ACVT133-1500 NT1.
Versatile Industrial Applications
The PE cartridge dust filter core is suitable for use in various industries, including:
-
Steel and non-ferrous metallurgy
-
Automotive industry
-
Ore processing
-
Rubber and tire manufacturing
-
Electronics, foundry, laser cutting
-
Chemical and pharmaceutical industries
-
Food processing
-
Glass, ceramics, cement, lime production
-
Metalworking and more…
Why Choose PE Cartridge Dust Filter Core?
By choosing the PE cartridge dust filter core, businesses can address common issues such as excessive dust emissions, reduced dust extraction flow, and frequent filter bag replacement, while also improving operational efficiency and reducing maintenance costs. As the saying goes, “you get what you pay for”—investing in high-quality filtration solutions brings sustainable value to both your facility and the environment.
Choose the PE cartridge dust filter core to protect worker health, optimize production processes, and contribute to your enterprise’s sustainable development goals. If you are looking for a competitively priced yet high-quality industrial air filtration solution, choose Dong Chau – DCF Factory. We specialize in manufacturing and supplying efficient air filtration products, meeting international standards with diverse models and sizes tailored to your business needs. Dong Chau is committed to competitive pricing, dedicated service, and a clear warranty policy. Contact us now on 02862702191 for detailed consultation and attractive offers!
