Overview of Medium Pocket Filter Frame

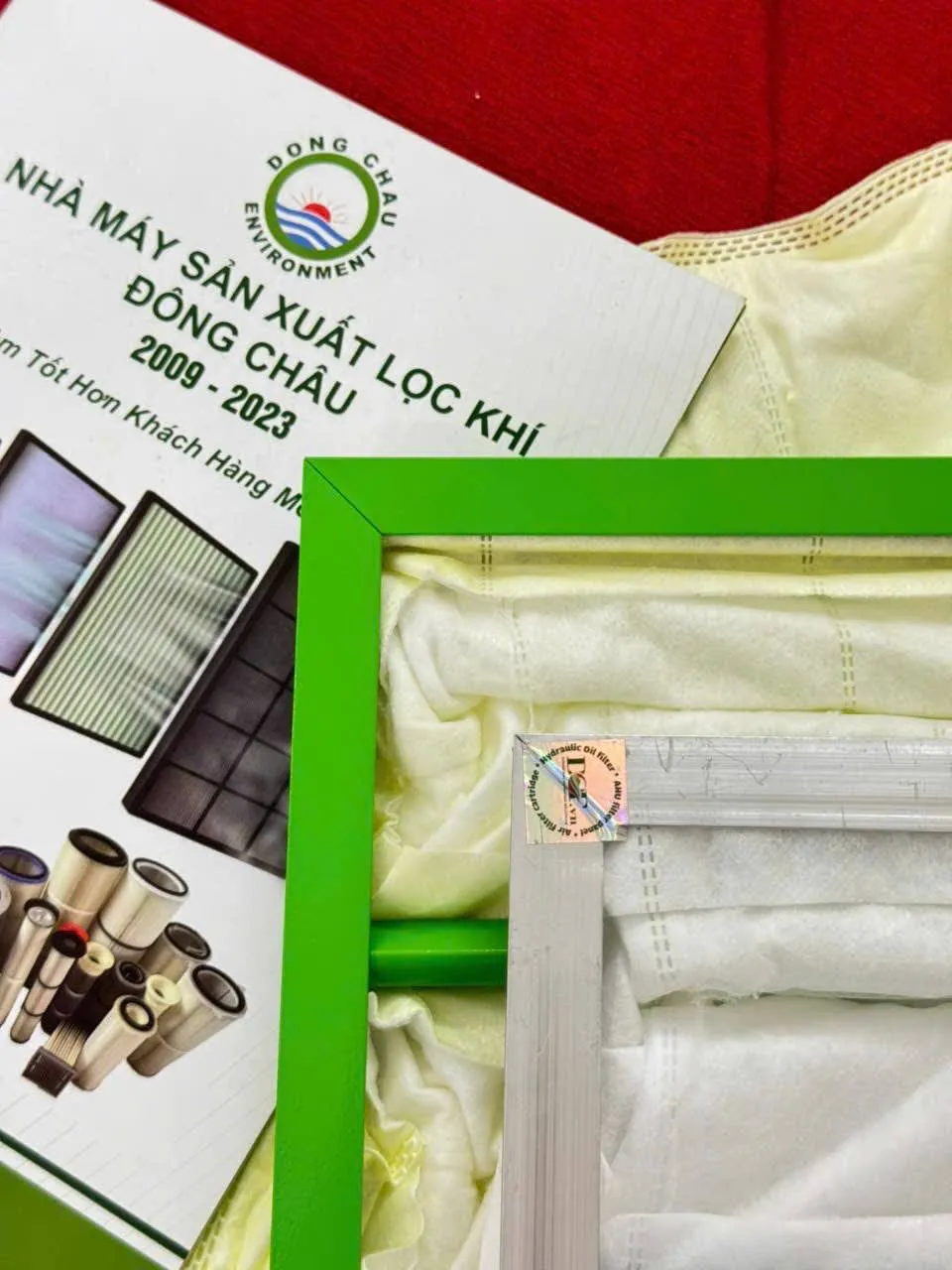

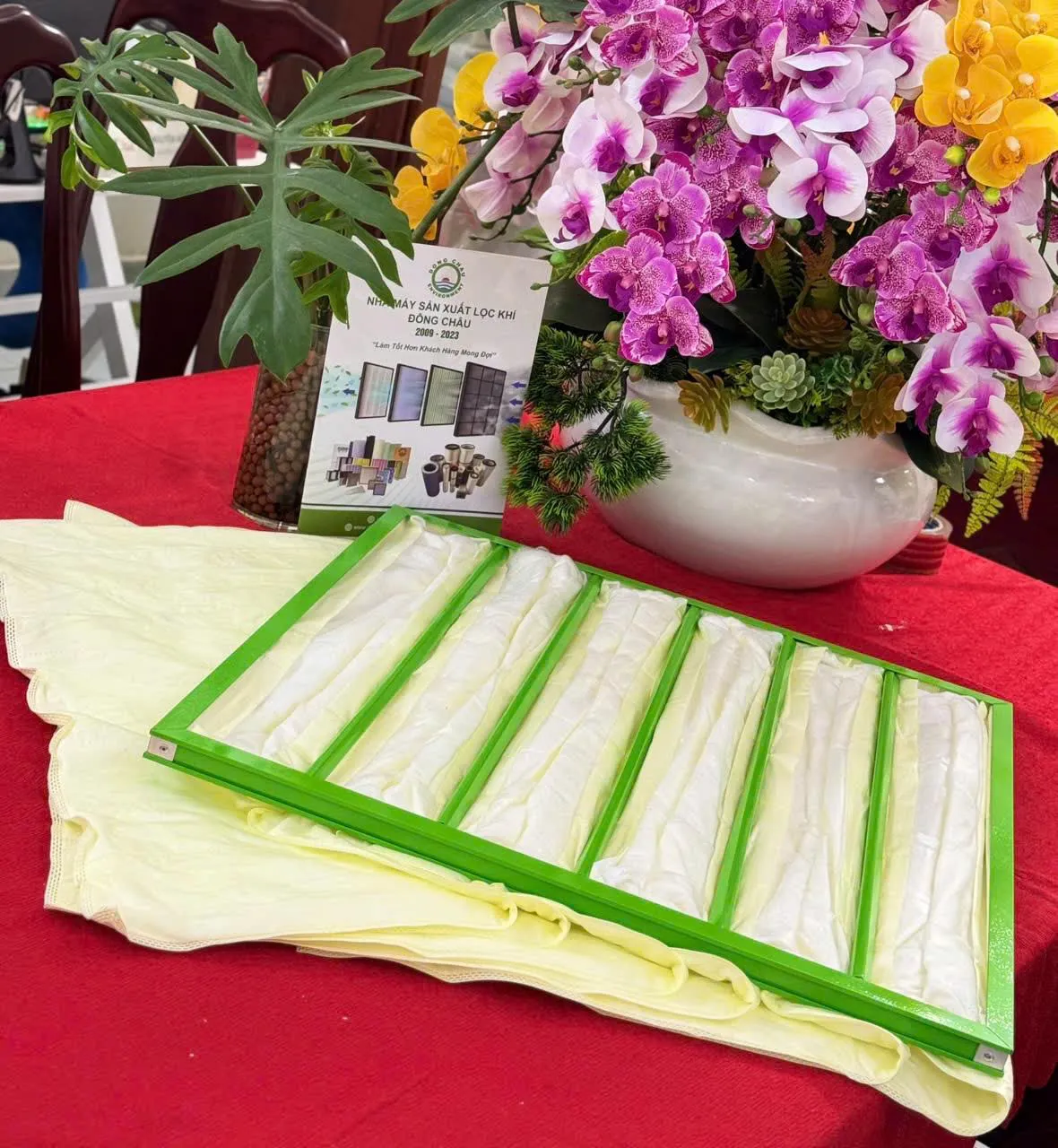

The Medium Pocket Filter Frame is a vital component in modern air filtration systems, commonly used as a primary or secondary filter in HVAC (Heating, Ventilation, and Air Conditioning) systems. One of the standout features of this product is its electrostatic powder-coated frame. This coating not only minimizes dust adhesion but also protects the frame from oxidation and corrosion caused by humid or chemically aggressive environments, ensuring long-lasting durability and high stability. As a result, it is an optimal solution, particularly suitable for harsh environments such as chemical plants, coastal areas, or locations with a high risk of corrosion.
In addition to the outstanding features already mentioned, the Medium Pocket Filter Frame is highly regarded for its flexible compatibility with various modern HVAC systems and its ease of installation and replacement. Its smart design, combined with the anti-static coating, helps optimize airflow and reduce pressure drop, thereby enhancing the overall efficiency of the HVAC system. Moreover, the use of eco-friendly and recyclable materials contributes to building a sustainable business image and a greener future. As the saying goes, "When eating fruit, remember who planted the tree"—choosing the right air filtration solution is a way to help preserve the living environment for future generations.
Outstanding Features of Medium Pocket Filter Frame with Anti-Static Coating
The Medium Pocket Filter Frame boasts several notable innovations thanks to its electrostatic powder-coated frame, delivering high performance even in challenging environments. This coating plays a crucial role not only in limiting dust accumulation but also offers significant benefits to both the product and the air filtration system.
-
Oxidation Resistance: The special anti-static coating protects the filter frame from oxidation caused by exposure to moisture or chemical agents. As a result, product lifespan is extended and stable operation is ensured over time.
-
Chemical Corrosion Resistance: The Medium Pocket Filter Frame with anti-static coating can withstand corrosion from chemicals like acids, alkalis, or salt vapor from marine environments. These are factors that often cause rapid damage to traditional metal materials, but this special coating helps maintain the product’s durability and stability in harsh conditions.
-
Dust Repellence: The coating significantly reduces dust accumulation on the frame, minimizing cleaning and maintenance efforts. This not only maintains filtration efficiency but also reduces long-term maintenance costs for the system.
Thanks to these superior advantages, the Medium Pocket Filter Frame with anti-static coating is an optimal choice for a wide range of environments—from coastal areas with salty air to chemical plants with acidic or alkaline vapors, or any location with high corrosion risk. It is not only suitable for standard environments but also meets the rigorous demands of modern air conditioning systems.

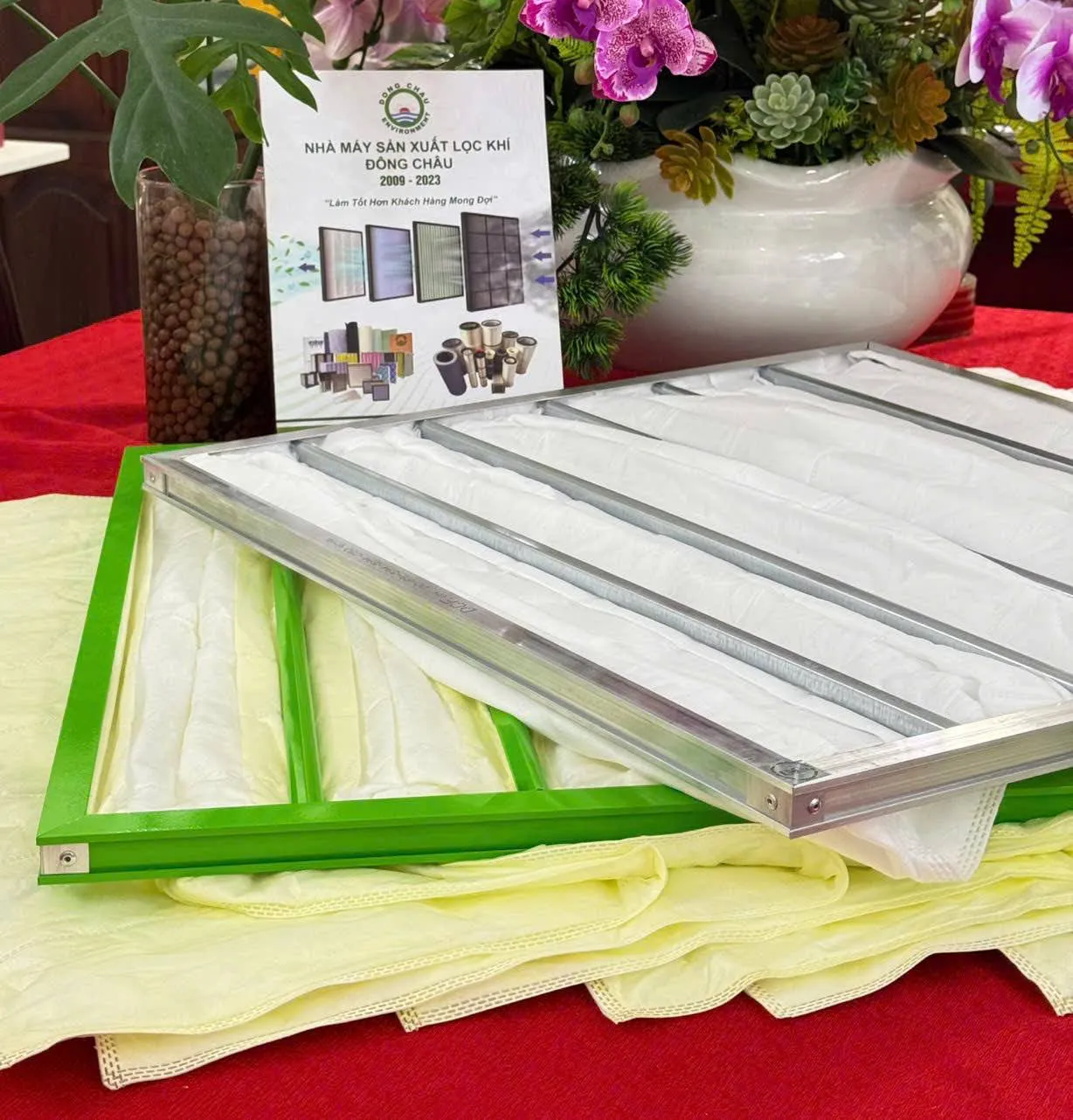

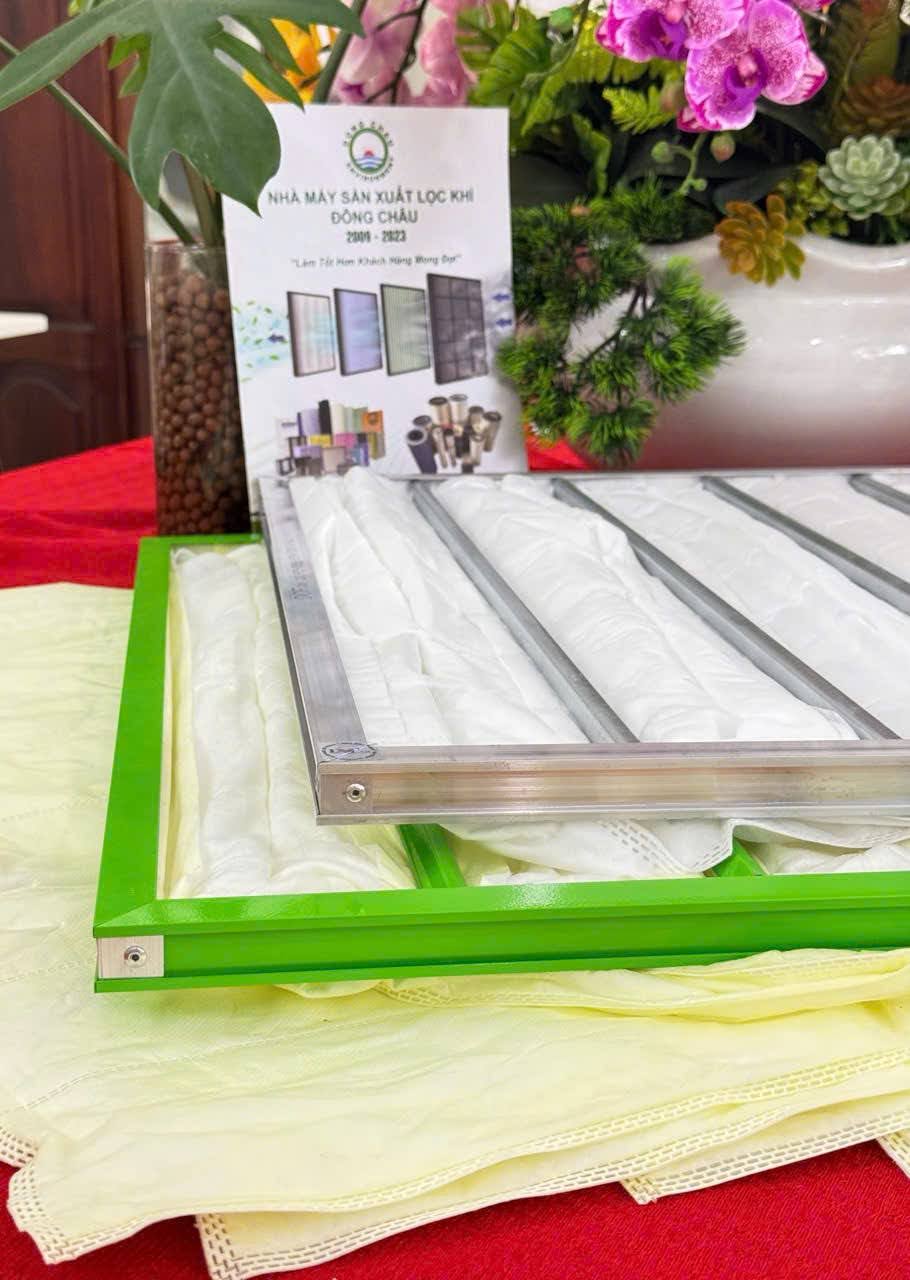

Product Structure
The Medium Pocket Filter Frame is designed with a sturdy structure and a variety of material options to maximize usability in different environments while ensuring outstanding air filtration efficiency.
|
Attribute |
Specification |
|
Frame |
Available in galvanized steel, aluminum, stainless steel, or plastic. Notably, the frame features an anti-static powder coating for dust, oxidation, and corrosion resistance, enhancing durability and stable operation in harsh environments. |
|
Filter Media |
Made from high-quality synthetic fibers or fiberglass, ensuring efficient dust filtration and a long product lifespan. |
|
Working Temperature |
Can operate reliably at temperatures up to 80°C, suitable for various HVAC systems and industrial settings. |
|
Number of Pockets |
Options range from 3 to 12 filter pockets, allowing flexibility based on usage needs and required airflow. |
|
Filtration Grade |
Available in F5, F6, F7, F8 grades, meeting different indoor air quality standards and dust filtration requirements. |
|
Frame Thickness |
Common thicknesses are 21mm and 25mm, providing robustness and high durability. |
|
Filter Media Color |
Filter media is available in various colors such as black, pink, orange, yellow, green, and white for easy identification and application-specific selection. |
Medium Pocket Filter Frame Technical Specifications
|
Dimensions (mm) (W×H×D) |
Number of Pockets |
Rated Airflow (m³/h) |
G3 (Pa) |
G4 (Pa) |
G5 (Pa) |
F6 (Pa) |
F7 (Pa) |
F8 (Pa) |
F9 (Pa) |
|
287×592×381 |
3 |
1700 |
52 |
61 |
68 |
82 |
135 |
165 |
210 |
|
490×592×381 |
5 |
2850 |
52 |
61 |
68 |
82 |
135 |
165 |
210 |
|
592×592×381 |
6 |
3400 |
52 |
61 |
68 |
82 |
135 |
165 |
210 |
|
287×592×381 |
4 |
1700 |
49 |
57 |
63 |
75 |
126 |
150 |
192 |
|
592×592×381 |
8 |
3400 |
49 |
57 |
63 |
75 |
126 |
150 |
192 |
|
287×592×533 |
3 |
1700 |
44 |
52 |
58 |
70 |
115 |
140 |
179 |
|
490×592×533 |
5 |
2850 |
44 |
52 |
58 |
70 |
115 |
140 |
179 |
|
592×592×533 |
6 |
3400 |
44 |
52 |
58 |
70 |
115 |
140 |
179 |
|
287×592×533 |
4 |
1700 |
41 |
48 |
53 |
63 |
106 |
126 |
161 |
|
592×592×533 |
8 |
3400 |
41 |
48 |
53 |
63 |
106 |
126 |
161 |
|
287×592×762 |
3 |
1700 |
33 |
39 |
44 |
52 |
86 |
118 |
150 |
|
592×592×762 |
5 |
2850 |
33 |
39 |
44 |
52 |
86 |
118 |
150 |
|
592×592×762 |
6 |
3400 |
33 |
39 |
44 |
52 |
86 |
118 |
150 |
|
287×592×762 |
4 |
1700 |
31 |
36 |
40 |
48 |
81 |
106 |
135 |
|
592×592×762 |
8 |
3400 |
31 |
36 |
40 |
48 |
81 |
106 |
135 |
The table above shows technical data, with initial resistance values separated by filtration grade (G3, G4, G5, F6, F7, F8, F9) for easy reference, comparison, and selection of the right pocket filter frame for your specific needs.
Practical Applications
The Medium Pocket Filter Frame with anti-static coating is suitable for a wide range of applications, including:
-
Offices, shopping centers, hotels, airports
-
Manufacturing plants, warehouses, chemical industrial zones
-
Educational institutions, hospitals, clinics, and healthcare facilities
-
Coastal areas with high salt content in the air
As the saying goes, "Prevention is better than cure"—choosing the right air filtration product from the start helps protect human health, prolong system lifespan, and save on long-term maintenance costs.
Conclusion
The Medium Pocket Filter Frame with anti-static coating is a comprehensive solution for environments with high corrosion risk or strict air quality requirements. With excellent durability, dust resistance, oxidation, and chemical corrosion protection, this product is the top choice for businesses, organizations, and modern projects. Proactively safeguard your system and living environment with high-quality air filtration products tailored to your unique conditions!
If you are looking for a cost-effective, high-quality industrial filtration solution, contact Dong Chau—the leading manufacturer and supplier of a wide range of industrial filtration products for diverse industries. With the motto "Reputation comes first," Dong Chau is committed to delivering superior performance, dedicated service, and the most competitive prices on the market. For more information, please call 02862702191 for prompt and professional consultation.
